333-048-500-204

Edgeboard Connectors Overview

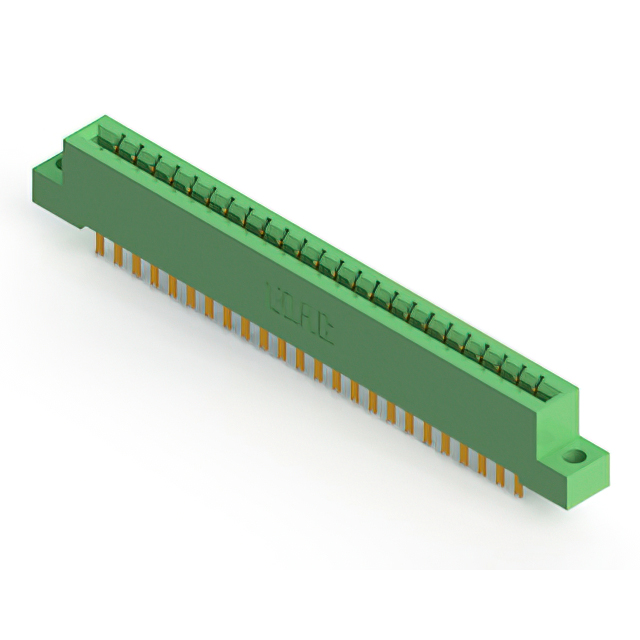

The EDAC Inc. 333-048-500-204 is a standard card edge connector from the 333 Series, designed for vertical wire installation. It features 48 positions with a dual-edge female contact configuration and a 3.96 mm (0.156 inch) pitch. The contacts are made of copper alloy with gold plating, rated for 3 A current. The housing is green thermoplastic polyester, supporting PCB thicknesses between 1.37 mm and 1.78 mm. Operating temperature ranges from -40°C to 105°C, with an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Vertical wire termination style for flexible cabling
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards
• Energy management hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct pin count, plating thickness, and orientation. Confirm that the requested variant matches the required PCB thickness range of 1.37 mm to 1.78 mm. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS directives if applicable to your project requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for vertical wire applications. The 48-position count suits moderate-density interface needs. Consider the 3 A current rating and -40°C to 105°C operating range for environmental suitability. Verify compatibility with the target PCB thickness before finalizing the design integration.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 Series, which specializes in standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. EDAC provides comprehensive datasheets and ECAD models for these components to support engineering design processes.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 333 Series variants such as 333-048-500-808 for similar specifications. Ensure mechanical dimensions and electrical ratings match exactly when substituting.
