Edgeboard Connectors Overview

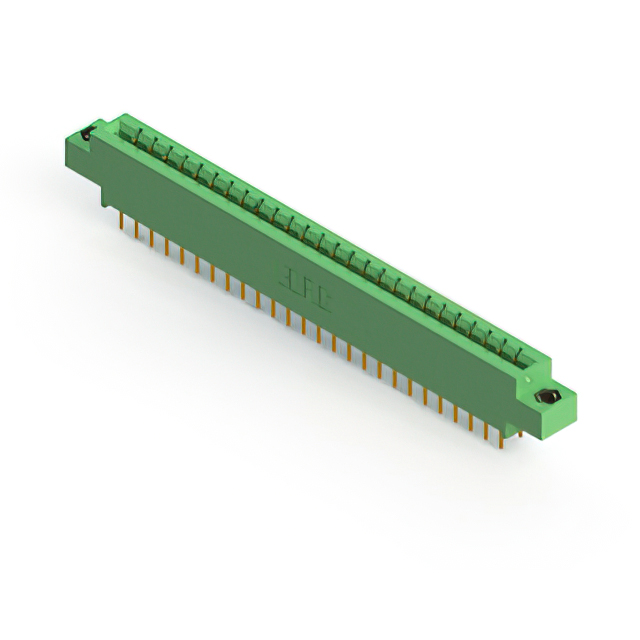

The EDAC Inc. 333-052-541-807 is a card edge connector from the 333 series, designed for dual-side contact configurations. It features 52 positions with a pitch of 0.156 inches (3.96 mm). The component utilizes copper alloy contacts with a gold plating thickness of 10.0 µin (0.25 µm) and operates within a temperature range of -40°C to 105°C. Insulation is provided by thermoplastic polyester, and it supports board thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-side contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance
• Thermoplastic polyester insulation provides thermal stability
• Supports wire wrap termination for secure mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Embedded hardware modules needing stable signal paths
• Electronic assemblies operating in varied environmental conditions

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and termination style. Confirm compatibility with the target PCB thickness and mounting orientation. Ensure the supplier provides original manufacturer documentation to validate authenticity and performance specifications before integration into production.

Edgeboard Connectors Selection Notes

Select this model when a dual-sided connection is necessary for high-density applications. Consider the wire wrap termination option if through-hole soldering is not preferred. Evaluate the thermal rating against the operational environment to ensure long-term reliability under specified temperature constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 333 series, which offers various configurations for card edge connections. The series is known for providing durable solutions for standard board interfaces. This specific variant focuses on dual-side connectivity with a defined pitch suitable for common industrial form factors.
