333-080-500-207

Edgeboard Connectors Overview

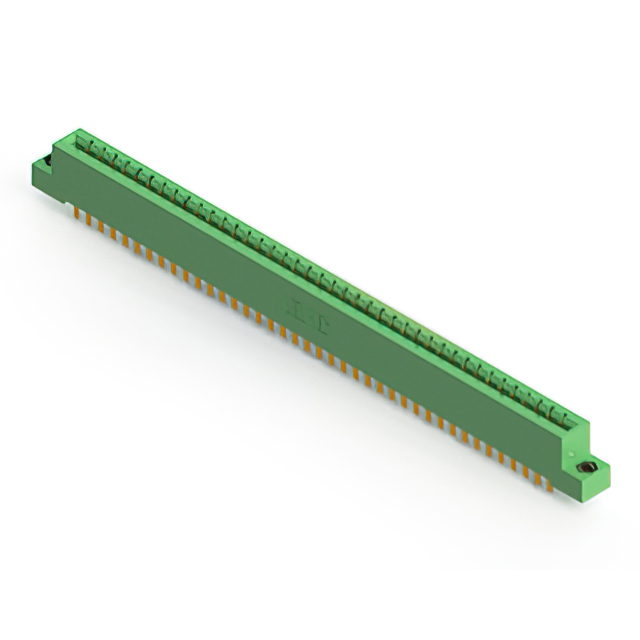

The EDAC Inc. 333-080-500-207 is a standard card edge connector designed for dual female interface applications. It features 80 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The component utilizes through-hole solder termination and is constructed with a thermoplastic polyester insulator and copper alloy contacts. Gold plating ensures reliable signal transmission. The unit supports circuit board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 80 contact positions for high-density interconnects
• Gold-plated copper alloy contacts ensure durable electrical performance
• Thermoplastic polyester housing offers structural stability and insulation
• Through-hole solder termination facilitates secure panel or board mounting

Edgeboard Connectors Applications

• Interfacing electronic modules with circuit boards
• High-density signal routing in industrial equipment
• Panel-mounted connection systems requiring vertical orientation

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with system requirements. Ensure that the thermal operating limits and mechanical dimensions align with the target application environment. Cross-reference supplier datasheets for accurate RoHS compliance status and packaging details before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 80-position interface with a 3.96 mm pitch is required. Confirm that the host PCB accommodates the specified board thickness range of 1.37 mm to 1.78 mm. Evaluate the need for gold-plated contacts and through-hole termination methods to match existing assembly processes and environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 333 series of standard card edge connectors. The series provides various position counts and termination options for diverse connectivity needs. The 333-080-500-207 variant specifically addresses applications requiring robust dual-row connections with standardized spacing and reliable soldering capabilities for long-term operational stability.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the precise dimensional tolerances or material specifications required for proper fit and function.
