337-006-524-101

Edgeboard Connectors Overview

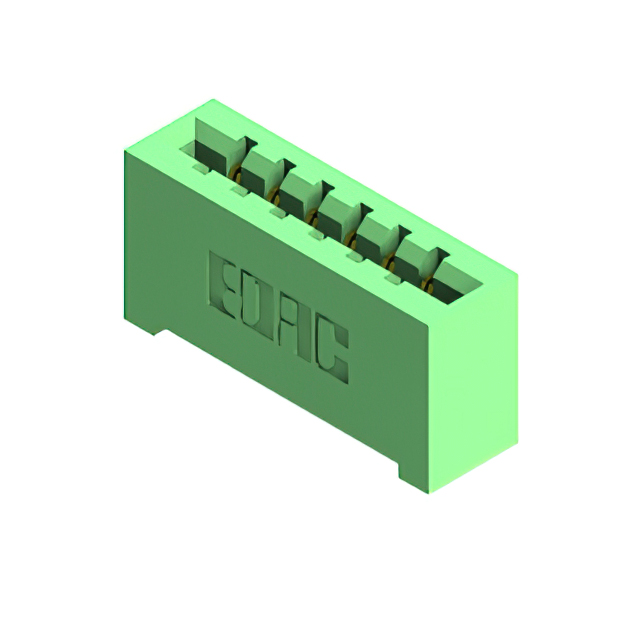

The EDAC Inc. 337-006-524-101 is a standard card edge connector from the 337 series, designed for vertical through-hole mounting. It features 6 positions with a 3.96 mm (0.156 inch) pitch and supports single-edge female contacts. The unit utilizes gold-plated copper alloy terminals and a thermoplastic polyester insulator. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C. The connector accommodates board thicknesses between 1.37 mm and 1.78 mm, ensuring reliable signal communication and power connection in electronic assemblies.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting configuration with flanges for secure installation
• Gold-plated copper alloy contacts providing corrosion resistance and low contact resistance
• Thermoplastic polyester housing offering high-temperature stability and mechanical durability

Edgeboard Connectors Applications

• Signal communication interfaces between mother and daughter boards
• Power connection points in modular electronic systems
• Extender board interconnects requiring vertical alignment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm termination type and row configuration. Ensure compatibility with the target PCB board thickness specifications before integration. Cross-reference the part number with authorized distributors to confirm current availability status and lead times. Confirm RoHS compliance requirements align with project standards.

Edgeboard Connectors Selection Notes

Select this component when a single-row, six-position vertical interface is required. Verify that the 3.96 mm pitch matches the design footprint. Ensure the operating environment stays within the specified -40°C to +105°C range. Confirm that the through-hole termination method suits the manufacturing process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series provides engineered solutions for interconnecting motherboards, daughterboards, and extenders. These connectors are characterized by their robust construction and suitability for both power and signal applications in various industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 337 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify pin-to-pin compatibility and mechanical dimensions before replacing.
