337-011-540-168

Edgeboard Connectors Overview

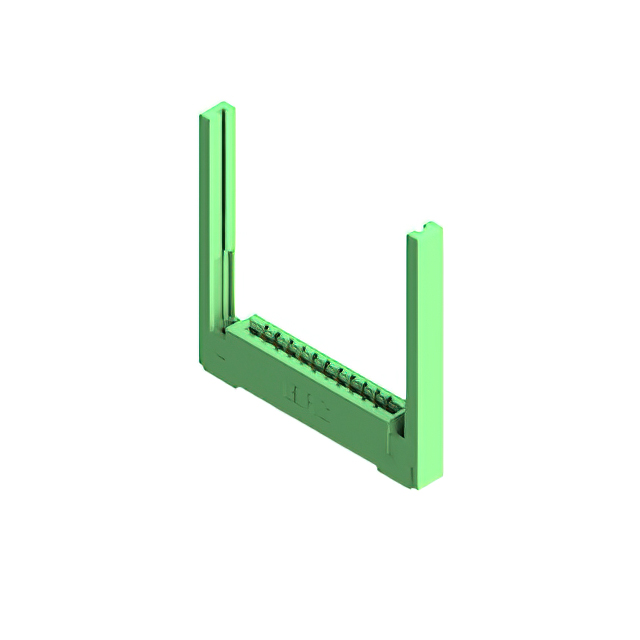

The EDAC Inc. model 337-011-540-168 is a standard card edge connector featuring 11 positions with a 3.96 mm pitch. Designed for single-edge applications, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The component supports through-hole vertical mounting and wire wrap termination, accommodating a board thickness of 1.57 mm. It operates within a temperature range of -40 C to +105 C, maintains an insulation resistance of 5 GOhms, and carries a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Single-edge configuration with gold-plated copper alloy contacts
• Thermoplastic polyester housing for vertical through-hole installation
• Wire wrap termination method for secure circuit connection

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control panel assemblies
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with design requirements. Confirm that the single-edge orientation and vertical mounting style align with the target PCB layout. Check for RoHS compliance status in the latest datasheet before finalizing procurement specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with a 3.96 mm pitch is required. Ensure the application environment remains within the specified -40 C to +105 C operating temperature range. Verify that the wire wrap termination method is supported by the assembly process and that the 1.57 mm board thickness matches the design constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 337 series, which provides standard card edge solutions. The series offers various position counts and mounting styles while maintaining consistent electrical characteristics and material specifications across different configurations for standardized electronic integration.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and mounting orientation to ensure functional equivalence without modifying the existing PCB footprint or assembly procedures.
