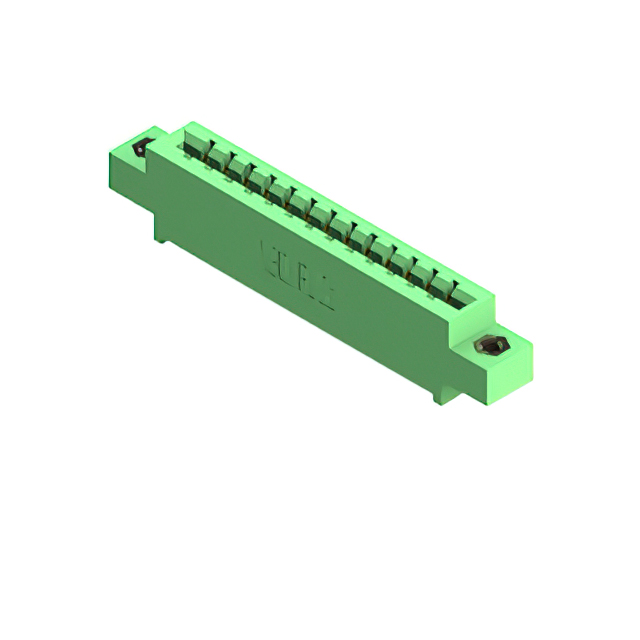

337-013-541-608 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 13POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 337-013-541-608
- Description：CONN EDGE SGL FMALE 13POS 0.156
- Series：337
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：13
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 337-013-541-608
Edgeboard Connectors Overview
The EDAC Inc. 337-013-541-608 is a standard card edge connector receptacle featuring 13 positions with a 3.96 mm (0.156 inch) contact spacing and 5.08 mm row spacing. Designed for vertical through-hole mounting, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body, ensuring reliable signal transmission in industrial applications.
Edgeboard Connectors Feature Summary
- Accepts nominal 1.57 mm thick PCBs
- Vertical through-hole panel or board mount style
- Gold-plated copper alloy contacts for corrosion resistance
Edgeboard Connectors Applications
- Industrial control systems requiring robust card edge interfaces
- Telecommunications equipment backplanes
- Consumer electronics modular assemblies
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and flange configuration. Ensure compatibility with the target PCB thickness and mounting orientation before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a vertical, single-row card edge interface with 3.96 mm pitch is required. Confirm that the application environment supports the specified operating temperature range and that the through-hole termination method aligns with the assembly process capabilities.
Edgeboard Connectors Part Context
This part belongs to the EDAC 337 series of standard card edge connectors. The series is characterized by high-profile insulator bodies and standardized spacing dimensions, providing a versatile solution for connecting edge-card modules to main system boards in various electronic architectures.
Edgeboard Connectors Replacement Considerations
Cross-reference with other 337-series variants from EDAC for different position counts or mounting angles. Verify mechanical fit and electrical continuity with equivalent products from other manufacturers offering similar 0.156-inch pitch card edge receptacles.
Edgeboard Connectors FAQ
What is the nominal PCB thickness accepted by this connector?
The connector is designed to accept printed circuit boards with a nominal thickness of 1.57 mm.
What is the contact spacing for this model?
The contact spacing is 3.96 mm (0.156 inches).
