337-013-544-168

Edgeboard Connectors Overview

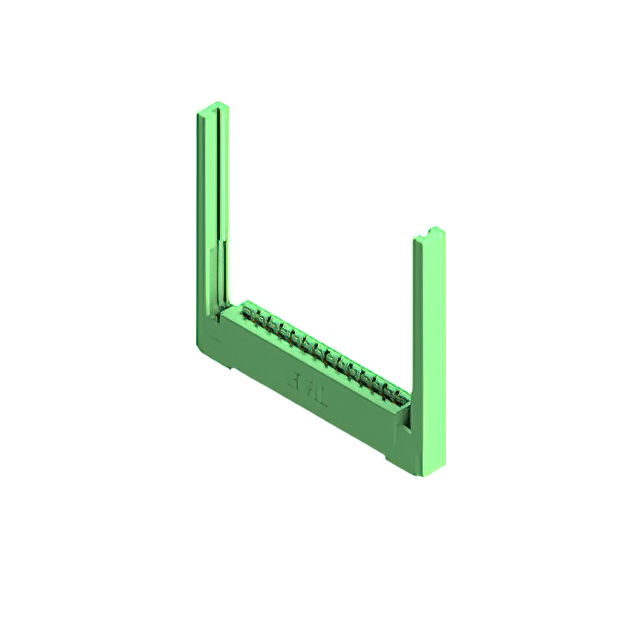

The EDAC Inc. model 337-013-544-168 is a standard card edge connector socket designed for vertical through-hole mounting. It features 13 positions with a 3.96 mm pitch and supports a single row configuration. The unit accommodates a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts housed in a thermoplastic polyester enclosure. Rated for 3 A current, it operates within a temperature range of -40 C to +105 C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting style for secure PCB integration
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester housing providing structural stability

Edgeboard Connectors Applications

• Standard card edge interconnect applications
• Electronic modules requiring vertical socket connections
• Industrial equipment interface boards

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the target printed circuit board meets the required 1.57 mm thickness specification. Confirm that the design supports vertical through-hole termination methods. Check regional availability restrictions as distribution may vary by location.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 13-position card edge socket is required. The 3.96 mm pitch must align with the mating card edge dimensions. Verify that the operating environment falls within the specified -40 C to +105 C temperature range. Ensure the application does not exceed the 3 A current rating per contact.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting configurations. It is categorized under sockets for card edge interfaces. The product line focuses on providing tailored interconnect solutions for diverse electronic designs.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official EDAC resources for potential cross-reference options.
