337-015-523-658

Edgeboard Connectors Overview

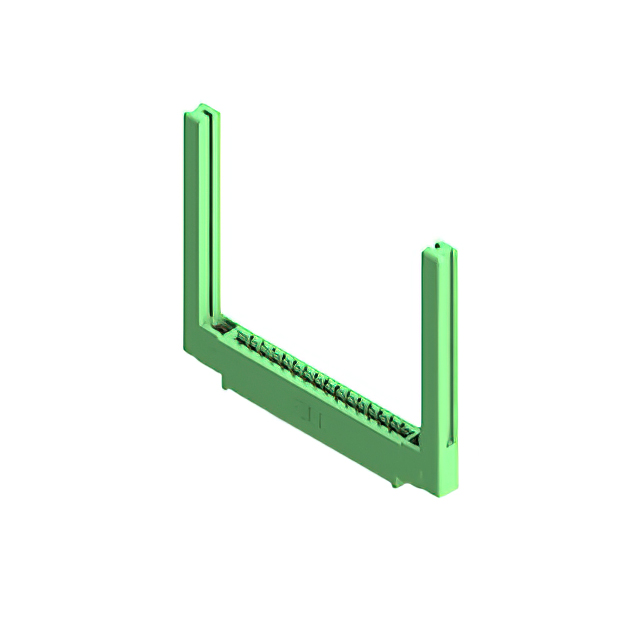

The EDAC Inc. model 337-015-523-658 is a standard card edge connector from the 337 series, designed for single-edge board insertion. It features 15 positions with a 3.96 mm (0.156 inch) contact spacing. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 3 A current, it supports PCB thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified single-edge circuit boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability and environmental protection

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified partners. Confirm RoHS compliance status against current regulatory requirements. Ensure storage conditions maintain integrity prior to assembly. Cross-reference datasheet specifications with design requirements to confirm compatibility.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 15 positions is required. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm operational range. Confirm that the application environment remains within the specified -40°C to +105°C temperature limits. Ensure mechanical clearance accommodates the vertical profile.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting configurations. The 337-015 variant specifically addresses applications requiring a compact 15-position interface. It shares common material properties and electrical ratings with other models in the same family line.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 15-position count, 3.96 mm pitch, and single-row female configuration. Verify identical PCB thickness tolerance and current rating capabilities. Ensure compatible termination methods and housing materials for mechanical fit.
