337-016-542-802

Edgeboard Connectors Overview

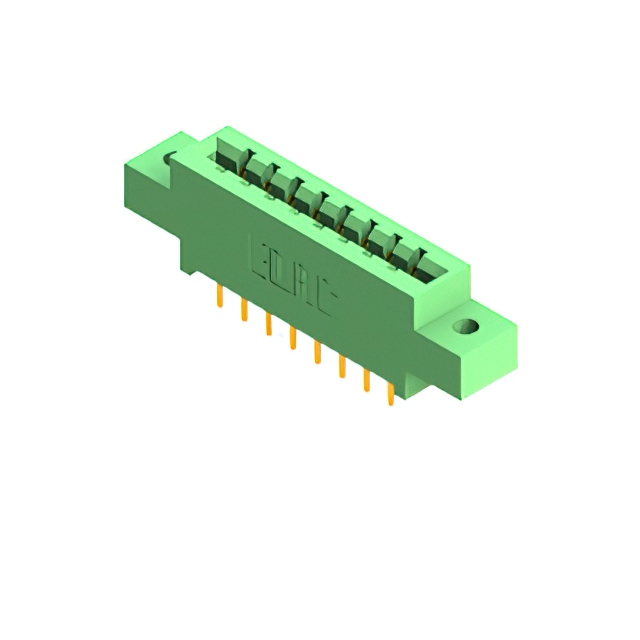

The EDAC Inc. 337-016-542-802 is a standard card edge connector socket designed for dual-edge board insertion. It features 16 positions with a 3.96 mm (0.156 inch) pitch and supports PCB thicknesses ranging from 1.37 mm to 1.78 mm. The component utilizes through-hole termination with gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It operates within a temperature range of -40°C to +105°C and includes top-mount flange features with an unthreaded 3.25 mm diameter opening.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability
• Top-mount flange design facilitates panel integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuitry connections
• Automotive electronics module interfaces
• Telecommunications hardware backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact mechanical dimensions and plating specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer declarations. Validate that the dual-edge requirement matches the system design constraints.

Edgeboard Connectors Selection Notes

Select this model when dual-edge board insertion is required for enhanced mechanical stability. The 3.96 mm pitch accommodates standard industrial board layouts. Verify that the operating temperature range meets environmental demands. Consider the through-hole mounting style for permanent assembly applications requiring high vibration resistance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles tailored for diverse electronic interconnection needs. The 337 series is recognized for its durability in demanding environments, supporting both single and dual-edge configurations across multiple industry sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 337 series variants for alternative position counts or mounting angles. Verify mechanical footprint compatibility before substituting with similar products from different manufacturers. Ensure electrical ratings match the original design requirements.
