337-016-559-207

Edgeboard Connectors Overview

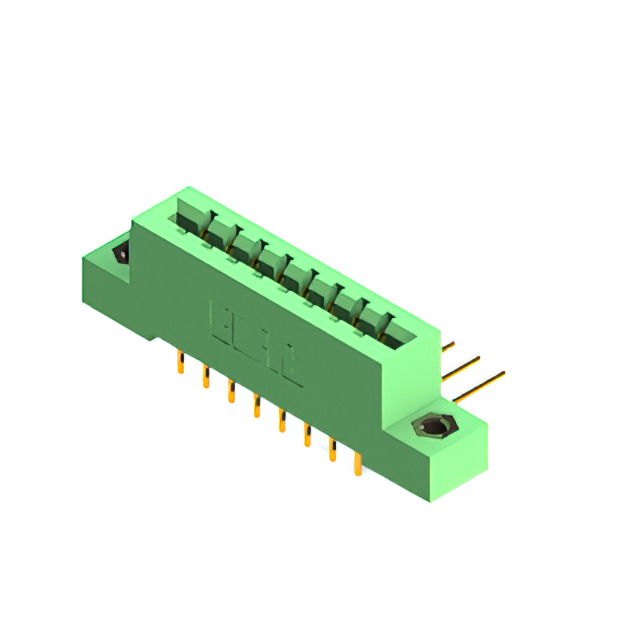

The EDAC Inc. 337-016-559-207 is a standard card edge connector socket featuring 16 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed for dual-edge card insertion. The component employs gold-plated copper alloy contacts with a wire wrap termination type, ensuring reliable electrical performance. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing structural integrity and high-temperature resistance suitable for industrial applications.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodates double-sided circuit boards
• Gold-plated copper alloy contacts ensure corrosion resistance and stable conductivity
• Wire wrap termination provides secure solderless connection options
• Thermoplastic polyester insulator body supports high-temperature environments

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation needing reliable signal transmission
• Automotive electronics operating in high-temperature conditions

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm compatibility with your board thickness and mounting requirements. Ensure that the wire wrap termination style aligns with your assembly process capabilities. Cross-reference the RoHS compliance status with current regulatory standards for your target market before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for a 16-position application. The 3.96 mm pitch dictates compatible PCB trace layouts. Consider the wire wrap termination method if traditional soldering is not preferred or feasible. Verify that the operating temperature range meets the environmental demands of the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination styles. The 337-016 variant specifically addresses mid-range density needs. It complements other series like the 387 for different mechanical constraints. The product line emphasizes durability and precise alignment for repeated insertions.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 337 series parts with matching 16-position counts and dual-edge configurations. Verify pinout compatibility and physical dimensions before swapping. Alternative manufacturers may offer similar specs but require mechanical fit verification.
