337-024-542-812

Edgeboard Connectors Overview

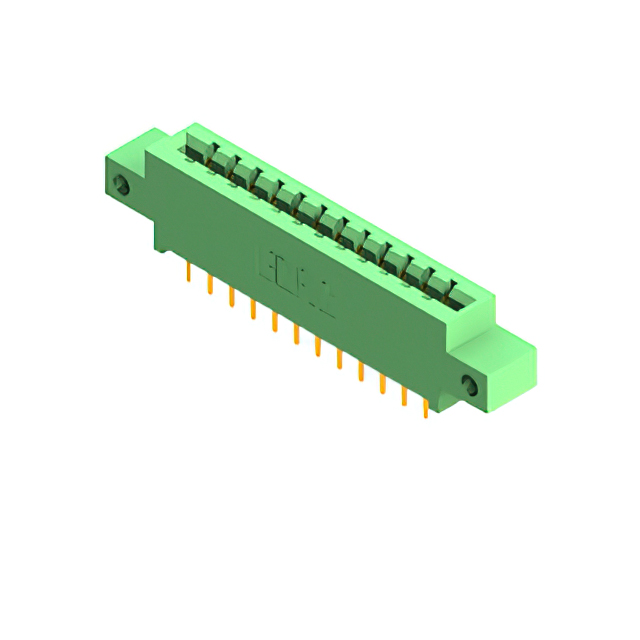

The EDAC Inc. part number 337-024-542-812 is a standard card edge connector socket from the 337 Series. It features 24 positions with a 3.96 mm (0.156 inch) contact spacing and supports 1.57 mm board thickness. The connector utilizes a dual female configuration with gold-plated copper alloy contacts and wire wrap termination. Designed for through-hole vertical mounting, it operates within a temperature range of -40°C to +105°C and has a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination style provides robust PCB connection stability

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware operating in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official EDAC documentation to confirm exact pin count and orientation. Confirm RoHS compliance status directly with the manufacturer or authorized distributor prior to procurement. Ensure the target application matches the specified 3.96 mm pitch and 1.57 mm board thickness requirements to guarantee mechanical compatibility.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required with wire wrap termination capabilities. The 3.96 mm pitch accommodates standard board layouts while the gold plating offers corrosion resistance. Consider the 3 A current rating and thermal limits when designing circuits that approach maximum electrical specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 Series, which specializes in standard card edge connectors. The series is characterized by its 3.96 mm spacing and thermoplastic polyester housing. It serves as a foundational interconnect solution within EDAC's broader portfolio of high-reliability connectors for industrial and medical sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 337 Series variants such as 337-022-542-207 or 337-026-558-112 for different position counts. Verify that any substitute maintains the identical 3.96 mm pitch, dual row structure, and wire wrap termination style to ensure direct mechanical and electrical interchangeability.
