337-030-540-158 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 30POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 337-030-540-158
- Description：CONN EDGE SGL FMALE 30POS 0.156
- Series：337
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：30
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 337-030-540-158
Edgeboard Connectors Overview

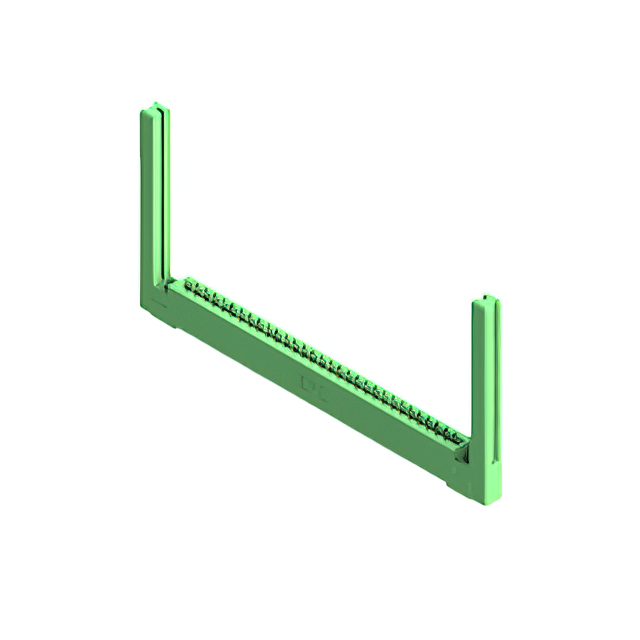

The EDAC Inc. 337-030-540-158 is a single-row, female card edge connector designed for through-hole mounting. It features 30 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts and a green thermoplastic polyester insulator. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and supports a current rating of 3 A. The operating temperature range extends from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- High-profile insulator body construction
- Gold-plated contact surfaces for reliable signal transmission
- Accepts standard 0.062 inch nominal thickness PCBs
Edgeboard Connectors Applications
- Industrial control systems
- Automotive electronics
- Communication equipment
- Power supply modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official 337 Series Ordering Guide to ensure correct termination style and row configuration. Confirm that the required PCB thickness aligns with the component's acceptance specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this model when a single-row interface with 30 positions is required for vertical board-to-board connections. Ensure the design accommodates the 0.156-inch pitch and verify that the thermal environment remains within the specified -40°C to +105°C operational limits for long-term reliability.
Edgeboard Connectors Part Context
This component belongs to the EDAC 337 series of standard card edge connectors. The series provides various configurations including multiple rows and different termination styles. The 337-030-540-158 specifically addresses applications requiring a single-sided female connection with through-hole wire wrap termination capabilities.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 337 Series Ordering Guide for direct functional equivalents. Verify pin count, pitch, and termination method compatibility before substituting with other part numbers.
