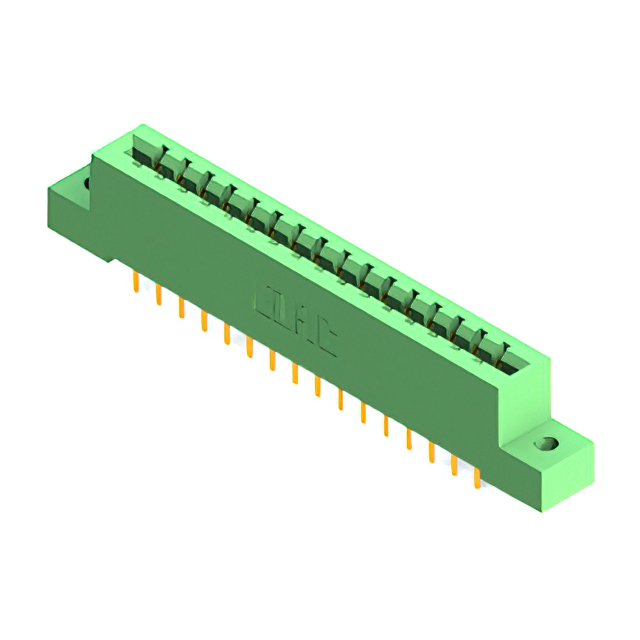

337-032-520-202

$7.83

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box

SKU:6495e099f40b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

337-032-520-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 337-032-520-202

Description：CONN EDGE DUAL FMALE 32POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：16
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 337-032-520-202

337-032-520-202

Edgeboard Connectors Overview

The EDAC Inc. 337-032-520-202 is a standard card edge connector designed for through-hole mounting. It features 32 positions with a 3.96 mm pitch and supports dual-edge female contacts. The unit utilizes gold-plated copper alloy terminals and a thermoplastic polyester housing. Rated for 3 A current, it accommodates board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board insertion
Gold-plated copper alloy terminals ensure reliable conductivity
Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

Through-hole PCB interconnection systems
Industrial control module interfaces
Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination style and flange configuration. Ensure compatibility with target PCB thickness specifications before integration. Confirm RoHS compliance status via current manufacturer datasheets. Validate supply chain authenticity through authorized channels only.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required. Verify that the 32-position count matches the circuit design requirements. Confirm that the through-hole mounting style aligns with the assembly process. Check that the operating temperature range meets environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination options. These connectors are engineered for robust electronic interconnections in demanding environments.
