Edgeboard Connectors Overview

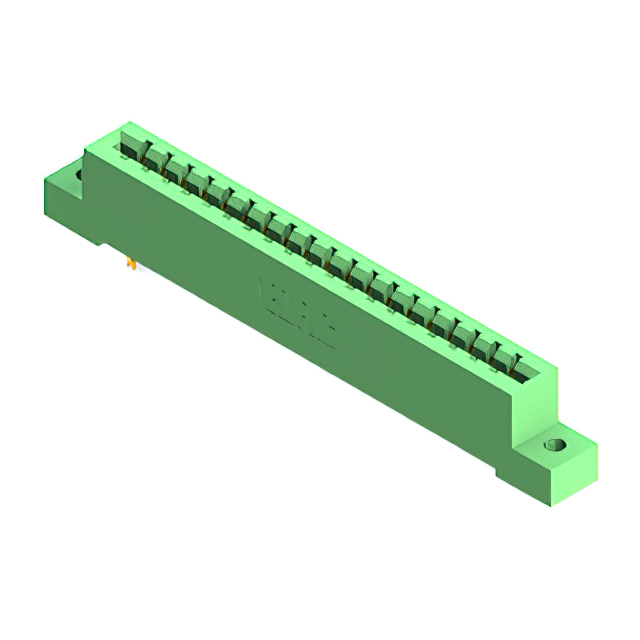

The EDAC Inc. 337-038-555-202 is a standard card edge connector from the 337 series, designed for signal communication and power connection. It features 38 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports dual-edge female connections and is rated for 3 A current. The unit includes flanges for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability
• Integrated flanges facilitate secure panel or board mounting

Edgeboard Connectors Applications

• Signal communication between mother and daughter boards
• Power connection interfaces in modular systems
• Extender board interconnections
• Standard card edge circuit integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the presence of flanges and exact contact plating thickness as documented in the official EDAC datasheet. Ensure compatibility with the target PCB thickness range before procurement. Confirm RoHS compliance status through the manufacturer's latest documentation to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 38 positions and a 3.96 mm pitch is required. The 3 A rating and gold-plated contacts suit general signal and power applications. Verify that the installation style matches the design constraints, as this model includes flanges for mounting stability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series is engineered for quality connections in modular electronic assemblies. The 337 series typically offers various position counts and mounting options to support diverse interface needs in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 337 series parts sharing the same 3.96 mm pitch and 38-position count. Verify mechanical dimensions and electrical ratings against alternative suppliers' offerings to ensure functional equivalence without modifying the host PCB layout.
