337-048-540-808

Edgeboard Connectors Overview

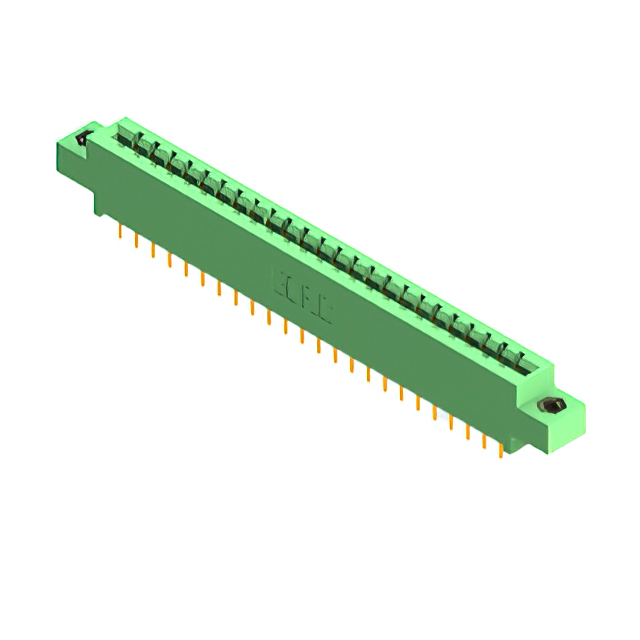

The EDAC Inc. 337-048-540-808 is a dual-edge female card edge connector with 48 positions and a 0.156-inch (3.96mm) pitch. It features through-hole mounting, wire wrap termination, and gold-plated copper alloy contacts. The housing is green thermoplastic polyester, rated for -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified board insertion
• Wire wrap termination for secure circuit connection
• Gold contact finish on copper alloy for reliable conductivity
• Thermoplastic polyester insulation for thermal stability

Edgeboard Connectors Applications

• High-density electronic module interconnection
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix against the official EDAC ordering guide to confirm exact pin count, termination style, and plating thickness. Ensure compatibility with target PCB thickness and mounting requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component for applications requiring high pin density in a dual-edge format. Confirm that the wire wrap termination method aligns with the assembly process and that the operating temperature range meets environmental specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 Series, designed for robust card edge connectivity. It utilizes standard 0.156-inch spacing to accommodate various board designs while maintaining mechanical stability through through-hole mounting.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 337 series variants with matching 48-position counts and dual-edge configurations. Verify identical pitch and termination methods when considering alternative part numbers.
