337-050-524-868

Edgeboard Connectors Overview

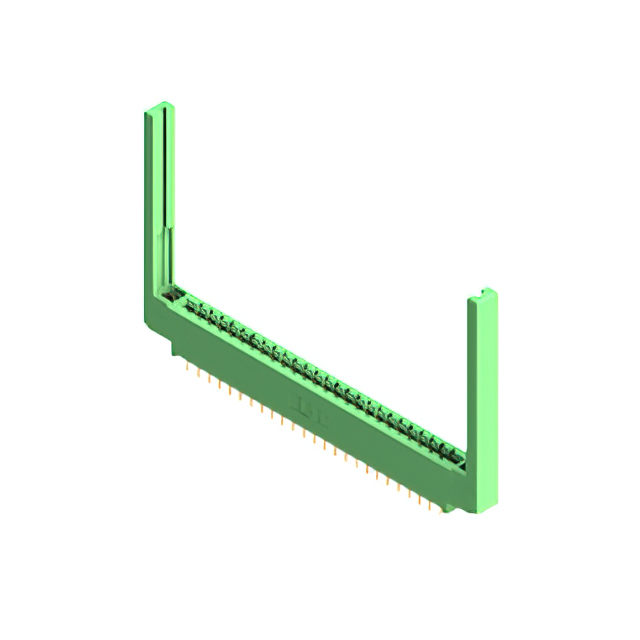

The EDAC Inc. model 337-050-524-868 is a standard card edge connector socket featuring 50 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports board thicknesses ranging from 1.37 mm to 1.78 mm. The component employs wire wrap termination for secure circuit attachment and includes gold-plated copper alloy contacts. Designed for through-hole mounting, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms with a 3 A current rating.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Wire wrap termination style ensuring reliable mechanical and electrical connections
• Gold-plated copper alloy contacts providing corrosion resistance and conductivity
• Thermoplastic polyester housing supporting vertical or right-angle installation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device internal circuitry connections
• Agricultural technology equipment modules
• General-purpose electronic assembly boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, row configuration, and termination type. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the selected variant matches the required PCB thickness and mounting orientation specifications for the target application.

Edgeboard Connectors Selection Notes

Select this component when a dual-row connection is required for a 50-position interface with a 3.96 mm pitch. Consider the wire wrap termination method if manual or automated wire wrapping processes are utilized rather than soldering. Evaluate the operating temperature range and current rating against the system's thermal and power requirements before finalizing the design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors, designed for robust performance in various industrial and commercial environments. The series provides multiple positioning options and mounting styles to accommodate diverse PCB layout needs. EDAC specializes in interconnect solutions for medical, agricultural, and industrial sectors, emphasizing durability and reliability.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, row configuration, and termination style to guarantee mechanical fit and electrical compatibility.
