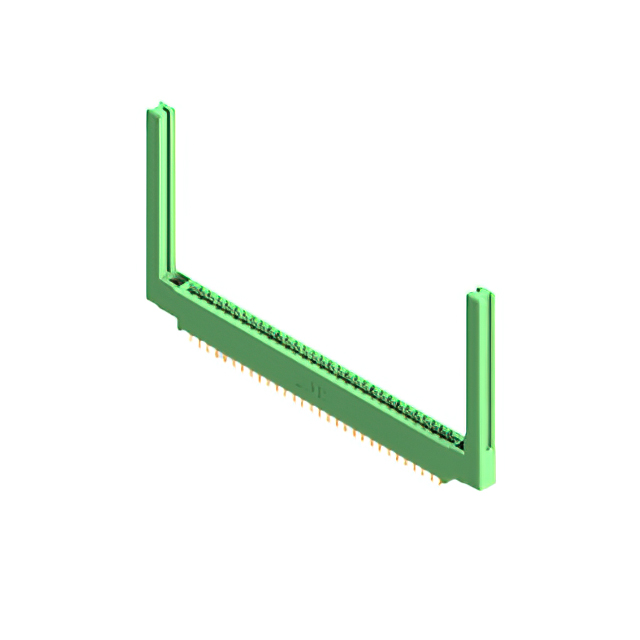

337-060-542-858 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 60POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 337-060-542-858
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：337
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 337-060-542-858
Edgeboard Connectors Overview
The EDAC Inc. 337-060-542-858 is a standard card edge connector socket designed for vertical through-hole mounting. It features 60 positions with a 3.96 mm pitch and supports a maximum board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating, rated for 3 A current. The housing utilizes thermoplastic polyester insulation, providing an insulation resistance of 5 GOhms. Operating temperature ranges from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Vertical through-hole termination style for secure PCB integration
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides thermal stability
Edgeboard Connectors Applications
- High-density electronic module interconnects
- Industrial control system backplanes
- Telecommunications equipment interfaces
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm pin count and contact configuration. Ensure compatibility with target PCB thickness and mounting orientation requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 60-position vertical card edge interface is required. Confirm that the 3.96 mm pitch aligns with the mating card edge design. Verify that the 3 A current rating and operating temperature range meet the application's electrical and environmental specifications.
Edgeboard Connectors Part Context
This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination styles, utilizing consistent 3.96 mm spacing and robust construction materials suitable for demanding industrial environments.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 337 series variants sharing identical 60-position layouts and vertical mounting configurations. Verify mechanical dimensions and contact material specifications to ensure functional equivalence.
