337-064-524-203

Edgeboard Connectors Overview

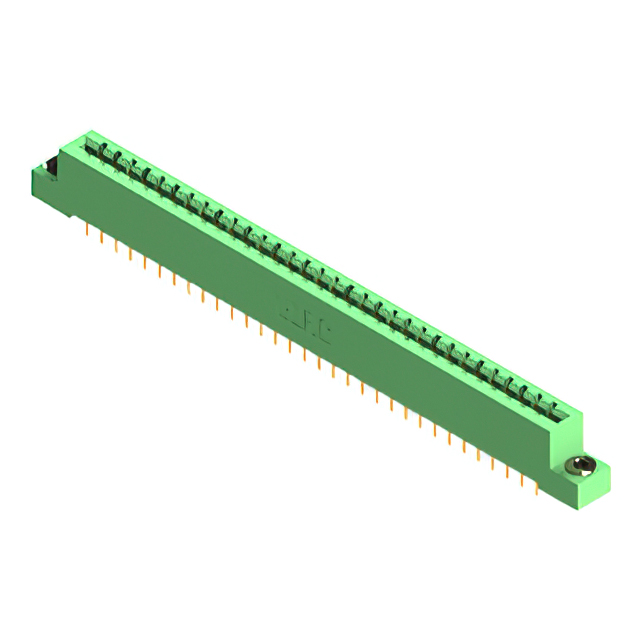

The EDAC Inc. 337-064-524-203 is a standard card edge connector designed for dual-edge board insertion. It features 64 positions with a 3.96 mm (0.156 inch) pitch, accommodating PCB thicknesses of 1.37 mm to 1.78 mm. The contacts are gold-plated copper alloy, rated for 3 A current. Housing material is thermoplastic polyester in green. Operating temperature range spans -40°C to +105°C. Insulation resistance is 5 GOhms. Installation style is through-hole.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge engagement
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability and insulation

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm mechanical variations such as flange type or mounting hardware. Confirm RoHS compliance status directly from the manufacturer datasheet prior to integration. Ensure PCB design matches the specified 3.96 mm pitch and allowable thickness tolerance to guarantee proper fit and electrical performance during assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density 64-position connection is required on a single board interface. The 3.96 mm pitch offers robust spacing compared to finer pitches, suitable for higher current applications up to 3 A. Verify that the through-hole mounting method aligns with the target PCB manufacturing capabilities and that the vertical orientation fits within the enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series provides various position counts and mounting styles. The 337-064 variant specifically addresses applications needing substantial I/O density in a compact footprint. It utilizes consistent family specifications regarding material composition and environmental ratings found across the 337 line.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching exact pitch, position count, and mounting style. Consult EDAC technical support for potential functional equivalents if this specific suffix is unavailable.
