Edgeboard Connectors Overview

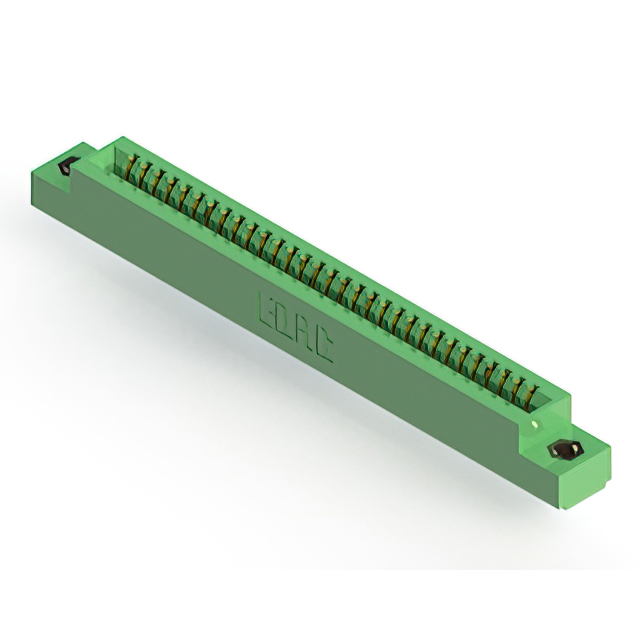

The EDAC Inc. 341-031-524-107 is a card edge connector from the 341 series, designed for single-edge board applications. It features 31 positions with a 0.100 inch (2.54mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inch (1.57mm). The connector utilizes female contacts with gold plating and a green thermoplastic insulator body. It supports panel mount installation and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts nominal 0.062 inch thick printed circuit boards
• Low profile insulator body design
• Gold-plated female contacts for reliable signal transmission

Edgeboard Connectors Applications

• Single-edge card edge interconnections
• Panel mount electronic assemblies
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 341-031-524-107 to confirm RoHS compliance status and exact packaging quantities. Ensure that the receiving facility has the appropriate tooling for panel mount installation. Cross-reference the contact spacing and board thickness requirements against the mating PCB design to guarantee mechanical fit and electrical continuity before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 31 positions is required. The 0.100 inch pitch suits standard density layouts. Verify that the application environment stays within the -40°C to +105°C operating range. Confirm that the panel mount style aligns with the chassis design constraints compared to through-hole or surface mount alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 341 series of standard card edge connectors. The series offers various position counts and mounting styles. The 341-031-524-107 specifically addresses single-edge applications requiring robust panel mounting capabilities. It shares the series' characteristic low-profile body and durable gold contact construction.
