341-053-524-101

Edgeboard Connectors Overview

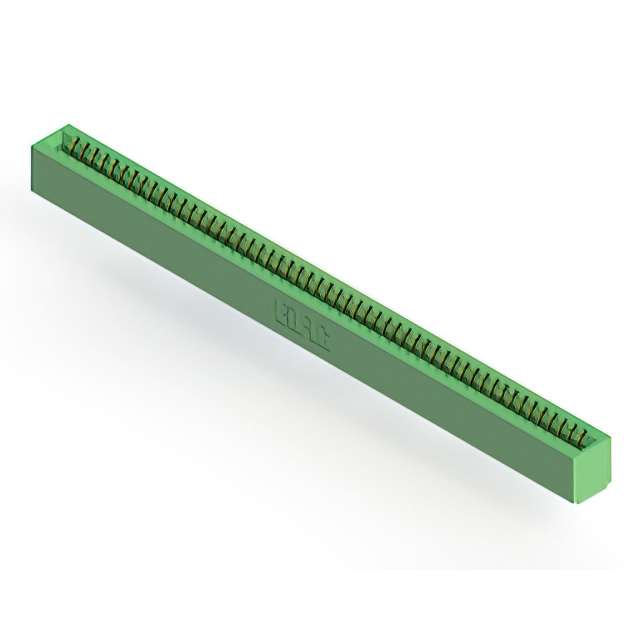

The EDAC Inc. 341-053-524-101 is a standard card edge connector receptacle from the 341 series. It features 53 positions with a 2.54 mm (0.100 inch) pitch and supports single-sided board configurations. The unit utilizes gold-plated copper alloy contacts for reliable signal transmission and includes PC pin termination for secure mounting. Designed for panel mount installation at a straight angle, it accommodates board thicknesses of 1.57 mm. The housing is constructed from thermoplastic polyester, ensuring durability in demanding environments.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration optimized for specific edge board geometries
• Gold-plated copper alloy terminals provide corrosion resistance and stable electrical performance
• Thermoplastic polyester insulation offers high mechanical strength and thermal stability
• PC pin termination style ensures robust mechanical fixation during panel assembly

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Medical device internal circuit connections
• Consumer electronics mainboard interconnects

Edgeboard Connectors Procurement Notes

Verify the exact position count and termination style against the official EDAC datasheet before ordering. Confirm that the target PCB design matches the specified 1.57 mm thickness requirement to ensure proper engagement. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the single-sided configuration aligns with the mating card edge layout to prevent connection failure.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 53-position connection is required with a standard 2.54 mm pitch. The straight panel mount style suits applications where space constraints limit angled installations. Gold plating is essential for environments requiring long-term reliability without oxidation concerns. Verify that the thermoplastic polyester housing meets the thermal operating range of the intended application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 341 series, which provides a wide range of standard card edge connectors. The series is characterized by its versatility in position counts and termination options. Components in this line are designed for general-purpose electronic interconnections across various industries. The 341 series maintains consistent dimensional standards for easy integration into existing designs.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
