342-006-500-102

Edgeboard Connectors Overview

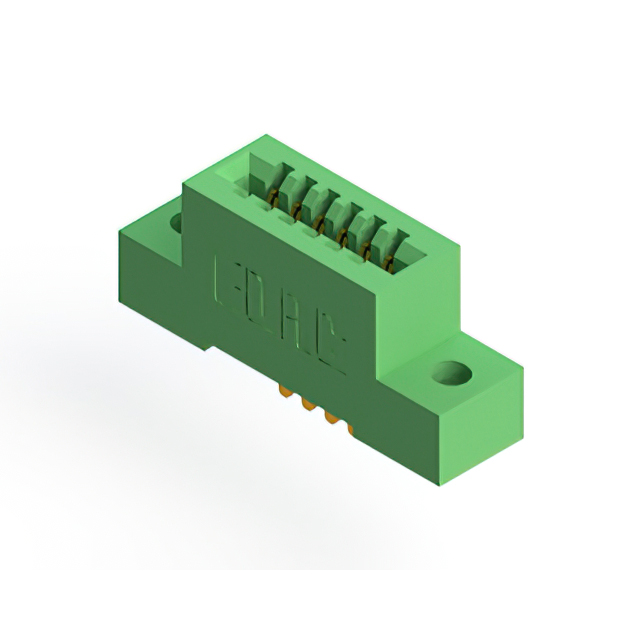

The EDAC Inc. 342-006-500-102 is a standard card edge connector from the 342 series, designed for single-edge board applications. It features six positions with a 0.100-inch (2.54 mm) pitch and accepts boards with a thickness of 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector utilizes gold-plated copper alloy contacts with a termination style of solder lug. It is constructed with a green thermoplastic polyester housing and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration for non-specified card types
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Solder lug termination provides secure PCB mounting
• Thermoplastic polyester housing offers durability and environmental resistance

Edgeboard Connectors Applications

• General-purpose electronic interconnect systems
• Industrial control panel assemblies
• Communication equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 342 Series Ordering Guide to confirm exact contact plating thickness and housing color specifications. Ensure compatibility with the target printed circuit board thickness range of 1.37 mm to 1.78 mm. Confirm that the solder lug termination method aligns with the assembly process capabilities. Cross-reference the RoHS status and moisture sensitivity level requirements with project standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection is required for low-to-medium density signal routing. The 2.54 mm pitch accommodates standard board layouts while maintaining robust mechanical stability. Consider the solder lug termination if wave or selective soldering processes are utilized in the manufacturing workflow. Evaluate the operating temperature range to ensure suitability for the intended environmental conditions during deployment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of card edge connectors, which are engineered for high-reliability applications requiring durable connections. The series offers various position counts and termination styles to support diverse design needs. The 342-006-500-102 specifically addresses compact single-edge interface requirements with standardized dimensions and materials suitable for widespread industrial adoption.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 342/392 Series interchangeability documentation for verified substitute part numbers. Direct replacements must match the 6-position count, 2.54 mm pitch, and single-edge female configuration. Verify that alternative components maintain identical solder lug termination and housing material properties to ensure mechanical and electrical compatibility.
