342-007-523-103

Edgeboard Connectors Overview

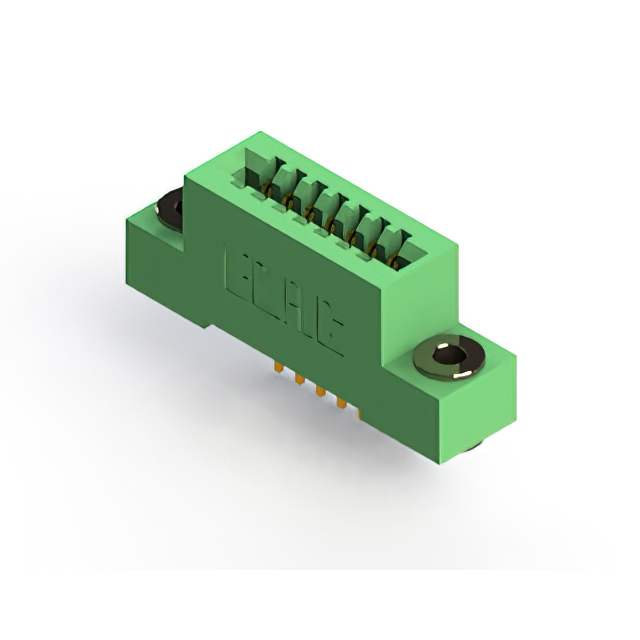

The EDAC Inc. 342-007-523-103 is a standard card edge connector designed for vertical panel mounting applications. This single-row component features seven female positions with a 2.54 mm (0.100 inch) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. It utilizes a solder pin termination method for secure board attachment. The insulator is made of thermoplastic polyester, providing stability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure structural integration
• Gold-plated copper alloy contacts for corrosion resistance
• Single row configuration with 2.54 mm contact spacing
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Medical device circuit board connections
• Communication equipment signal routing
• Automotive electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact physical dimensions and termination style. Ensure compatibility with target PCB stack-up and mating card thickness specifications before finalizing procurement orders. Cross-reference manufacturer part numbers to avoid substitution errors in critical assemblies.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row connection is required for thin profile boards. Confirm that the 2.54 mm pitch aligns with the design layout. Evaluate the thermal rating against environmental conditions. Consider mechanical retention needs for the panel mount style during the initial design phase.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series, which focuses on standard card edge connectors. The series provides various position counts and mounting options. It serves as a fundamental interconnect solution for general-purpose electronic assemblies requiring robust mechanical and electrical performance.
