342-014-524-102

Edgeboard Connectors Overview

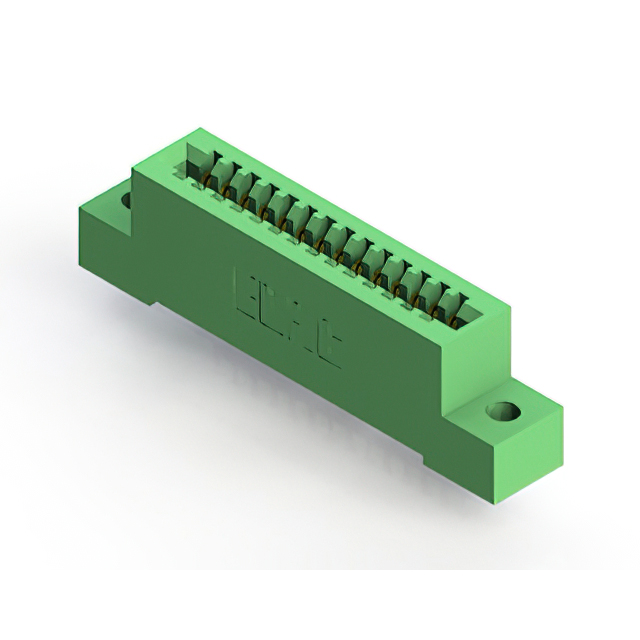

The EDAC Inc. 342-014-524-102 is a standard card edge connector from the 342 series, designed for single-edge board applications. It features 14 positions with a 0.100 inch (2.54 mm) pitch and supports PCB thicknesses of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a 3 A current rating and thermoplastic polyester insulation. It employs a vertical panel mount style with solder pin termination, ensuring reliable electrical connections in industrial environments.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration for non-specified card types
• Gold-plated copper alloy contacts ensure durable signal integrity
• Vertical panel mount design facilitates secure structural installation

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument boards

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board accommodates the specified 1.57 mm thickness requirement to ensure proper mechanical fit. Confirm that the application environment remains within the operational temperature range of -40°C to 105°C. Ensure that the single-edge mating orientation aligns with the system design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row connection is required for vertical panel mounting. The 14-position count suits moderate I/O density needs. Verify compatibility with the specific card thickness tolerance and confirm that the solder pin termination method matches the assembly process capabilities of the manufacturing facility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic interconnection requirements. The 342-014-524-102 specifically addresses single-edge applications requiring robust panel mounting solutions with standardized spacing dimensions.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the same EDAC 342 series family. Verify identical pitch, position count, and mounting style before substitution. Ensure that any alternative component maintains the same contact plating specifications and thermal performance ratings.
