342-017-541-103

Edgeboard Connectors Overview

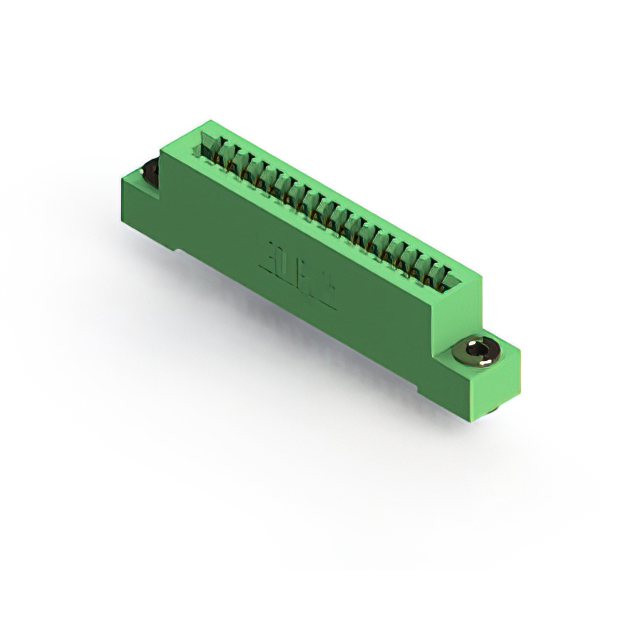

The EDAC Inc. 342-017-541-103 is a standard card edge connector from the 342 series, designed for through-hole mounting with a vertical orientation. It features 17 positions in a single row configuration with a 2.54 mm pitch. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It supports wire wrap termination and accommodates board thicknesses between 1.37 mm and 1.78 mm. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-row female connector design with flanged housing for secure panel installation
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Wire wrap termination method provides robust mechanical connection for lead wires
• Thermoplastic polyester insulation material supports high-temperature operation up to 105°C

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Medical device circuit board integration
• Consumer electronics module attachment

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before ordering. Confirm that the specific suffix matches the required contact plating and housing color specifications. Ensure compatibility with existing PCB layout and wire wrap tools. Check for RoHS compliance status if required by project regulations. Validate supply availability through authorized distributors as stock levels may vary.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 17-position card edge connector with wire wrap termination is required. The 2.54 mm pitch suits standard board designs. Consider the vertical mounting style and flanged housing for stable panel integration. Ensure the operating temperature range meets environmental requirements. Verify that the 3 A current rating aligns with circuit load demands.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 342 series, which specializes in standard card edge connectors for various electronic applications. The series offers multiple position counts and configurations to support diverse interface needs. Components in this line are engineered for durability and consistent performance in industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching all electrical and mechanical parameters precisely.
