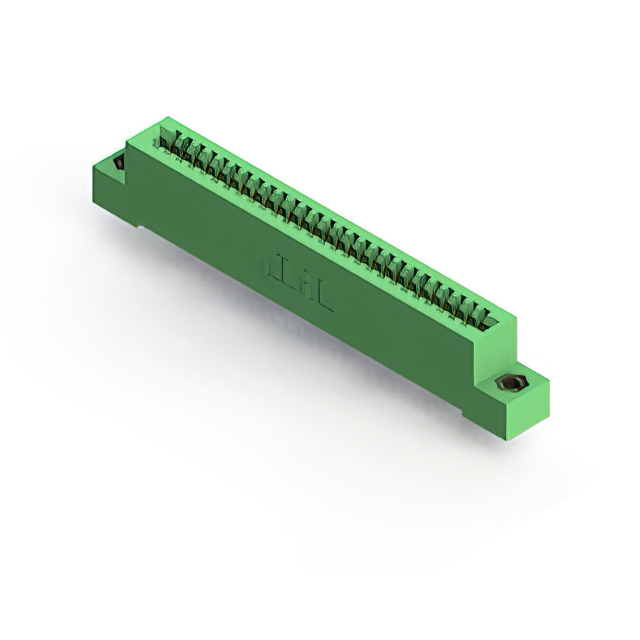

342-027-541-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 27POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 342-027-541-107
- Description：CONN EDGE SINGLE FML 27POS 0.100
- Series：342
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：27
- Number of Positions：27
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 342-027-541-107
Edgeboard Connectors Overview
The EDAC Inc. 342-027-541-107 is a standard card edge connector featuring 27 positions with a 2.54 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. Designed for single-edge board insertion, it supports a current rating of 3 A and offers an insulation resistance of 5 GOhms. The component employs wire wrap termination and is rated for operation between -40°C and +105°C.
Edgeboard Connectors Feature Summary
- Single row female contact configuration for standard card edge applications
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic polyester housing provides structural stability
- Wire wrap termination style facilitates secure PCB mounting
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Communication equipment backplanes
- Test and measurement instrumentation modules
Edgeboard Connectors Procurement Notes
Verify the specific suffix code against official EDAC documentation to confirm exact termination type and flange configuration. Ensure compatibility with target PCB thickness and mating card dimensions before integration. Cross-reference RoHS compliance status with current manufacturer declarations.
Edgeboard Connectors Selection Notes
Select this model when a 27-position interface with 2.54 mm spacing is required. Confirm that wire wrap termination aligns with assembly capabilities. Evaluate thermal requirements against the specified operating temperature range and current capacity constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and termination styles. This specific variant focuses on mid-range density connections using durable materials suitable for repeated insertions.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match precise dimensional tolerances or material specifications.
