342-029-524-102

Edgeboard Connectors Overview

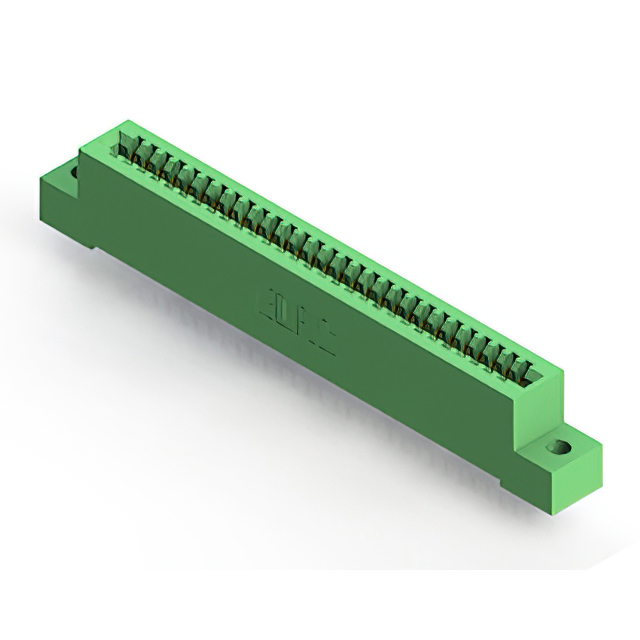

The EDAC Inc. 342-029-524-102 is a standard card edge connector from the 342 series, designed for vertical panel mounting. It features 29 positions with a 2.54 mm pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It accepts circuit boards up to 1.57 mm in thickness and provides an insulation resistance of 5 GOhms. The unit is rated for 3 A current and employs solder pin termination.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure installation
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Interface with single-edge circuit boards
• Connection with card assemblies
• Electronic equipment requiring high-temperature operation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact contact termination and mounting style variations. Ensure compatibility with the target board thickness of 1.57 mm. Confirm that the 2.54 mm pitch aligns with the design requirements. Check for RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for single-edge cards. The 29-position count suits moderate density applications. Verify that the 3 A current rating meets the electrical load requirements. Ensure the 105°C maximum operating temperature is sufficient for the intended environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series, which specializes in deep card edge connectors. The series offers various position counts and mounting options. It is distinct from other EDAC families like the 355 or 627 series, which feature different pitches or D-sub configurations.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic cross-references may not match the specific 1.57 mm board thickness tolerance or the precise 2.54 mm pitch requirement.
