Edgeboard Connectors Overview

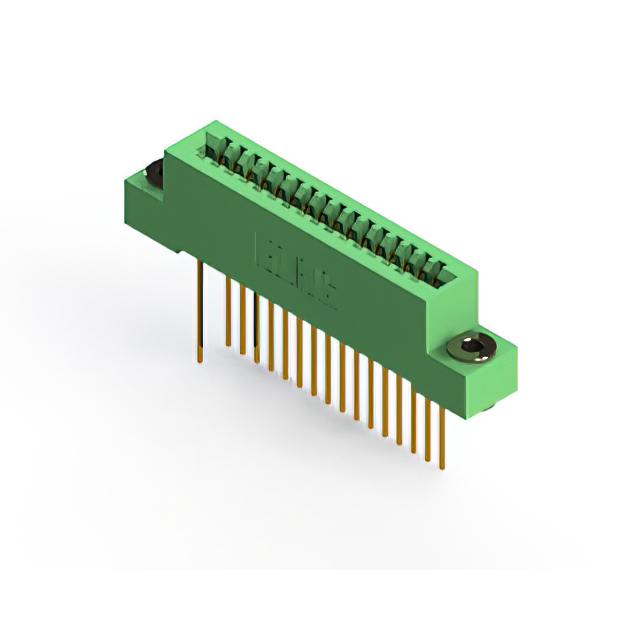

The EDAC Inc. 342-032-541-203 is a standard card edge connector from the 342 series, designed for dual-edge board insertion. It features 32 positions with a 2.54 mm (0.100 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts rated for 3 A current. It employs a through-hole termination method with PC pins for secure mounting. The housing is constructed from thermoplastic polyester, colored green, and operates within a temperature range of -40°C to +105°C. Insulation resistance is specified at 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design accommodates double-sided circuit boards.
• Flush mount flange configuration with floating bobbin eyelets for panel installation.
• Gold-plated contacts ensure reliable signal transmission in high-cycle applications.
• Thermoplastic polyester insulation provides stability across wide temperature ranges.

Edgeboard Connectors Applications

• Industrial control panels requiring vertical panel-mount connectivity
• Telecommunications equipment utilizing dual-edge card interfaces
• Test and measurement instrumentation with standardized card slots

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official EDAC documentation. Confirm that the specific ordering suffix matches the required flange style and contact plating specifications. Ensure compatibility with the target PCB thickness and row configuration before finalizing procurement orders to prevent integration errors.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge connection is required for vertical panel mounting. The 32-position count suits moderate-density interconnects. Verify that the 2.54 mm pitch aligns with the mating card edge layout. The flush mount feature necessitates precise panel cutouts. Consider the operating temperature range if deployed in extreme environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series offers various position counts and termination styles. The 342-032 variant specifically addresses mid-range density needs. It complements single-row and different pitch options within the broader EDAC portfolio for diverse electronic assembly requirements.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 342 series connectors with identical 32-position counts and dual-edge configurations. Verify that alternative part numbers maintain the same 2.54 mm pitch and gold plating specifications. Ensure mechanical dimensions for the flush mount flange remain compatible with existing panel designs.
