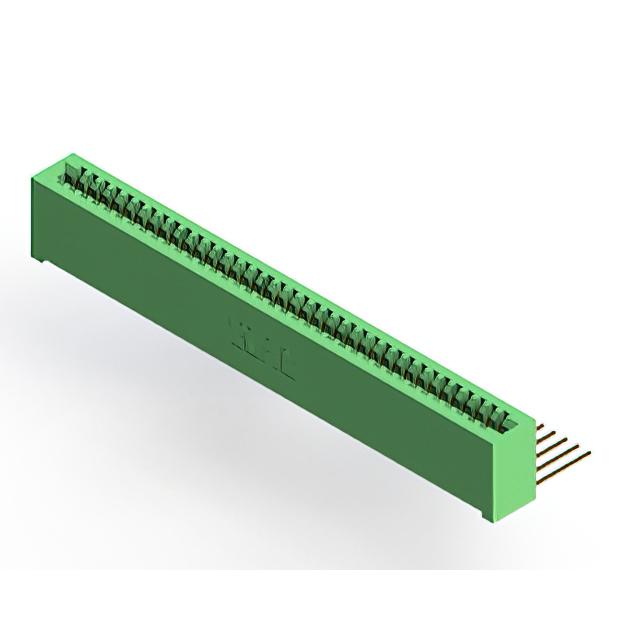

342-037-559-101

$15.91

Description：CONN EDGE SINGLE FML 37POS 0.100
Series：342
Mfr：EDAC Inc.
Package：Box

SKU:3c356340e16c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

342-037-559-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 37POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 342-037-559-101

Description：CONN EDGE SINGLE FML 37POS 0.100
Series：342
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：37
Number of Positions：37
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 342-037-559-101

342-037-559-101

Edgeboard Connectors Overview

The EDAC Inc. 342-037-559-101 is a standard card edge connector from the 342 series, designed for single-edge board applications. It features 37 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes gold-plated cantilever contacts made of copper alloy housed in a green thermoplastic polyester body. It supports a current rating of 3 A and operates within a temperature range of -40°C to 105°C. The unit accommodates card thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

Single-row female connector configuration with cantilever contact type
Gold-plated copper alloy contacts for reliable signal transmission
Thermoplastic polyester insulation housing with green coloration

Edgeboard Connectors Applications

Single-edge circuit board interconnections
Industrial control system module interfaces
Electronic equipment backplane connections

Edgeboard Connectors Procurement Notes

Verify that the supplier provides official EDAC documentation confirming the part number 342-037-559-101 matches the specified 37-position single-edge configuration. Ensure the product meets RoHS compliance requirements as indicated by the manufacturer. Confirm the physical dimensions align with the 2.54 mm pitch specification before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a single-edge card interface with 37 positions is required. The 2.54 mm pitch ensures compatibility with standard PCB layouts. The gold plating offers corrosion resistance suitable for general electronic environments. Verify that the target application board thickness falls within the 1.37 mm to 1.78 mm operational range for proper mechanical engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series provides various position counts and mounting options for different board integration needs. The 342-037-559-101 specifically addresses high-density single-edge connection requirements with standardized pitch dimensions.
