342-044-540-101

Edgeboard Connectors Overview

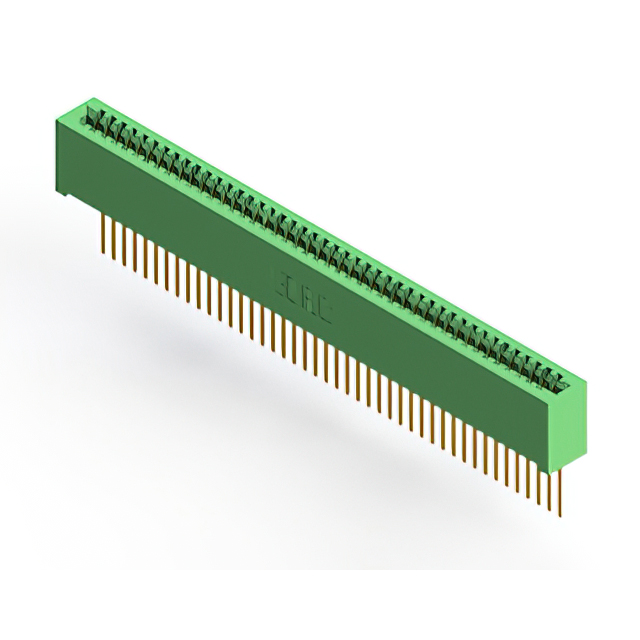

The EDAC Inc. 342-044-540-101 is a standard card edge connector socket designed for single-edge board applications. It features 44 positions with a 2.54 mm (0.100 inch) pitch and supports a nominal PCB thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and wire wrap termination for reliable signal transmission. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration for non-specified card types
• Wire wrap termination style ensures secure through-hole mounting
• Gold-plated contacts provide corrosion resistance and conductivity

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating thickness and housing color variations. Ensure compatibility with target PCB stack-up dimensions before procurement. Confirm RoHS compliance status via the manufacturer's latest datasheet release to meet regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this model when a single-edge connection is required for boards up to 1.57 mm thick. The 44-position count suits moderate-density interface needs. Verify that the wire wrap termination method aligns with the assembly process capabilities and that the vertical mounting orientation fits the mechanical enclosure constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series provides various position counts and row configurations to support diverse electronic module interfaces. The 342 designation indicates a specific product line characterized by thermoplastic polyester housings and standardized pin spacing for broad industry compatibility.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 342 series for alternative position counts or row configurations. Verify that any substitute maintains the same 2.54 mm pitch and 1.57 mm board thickness tolerance to ensure mechanical fit.
