342-062-544-202

Edgeboard Connectors Overview

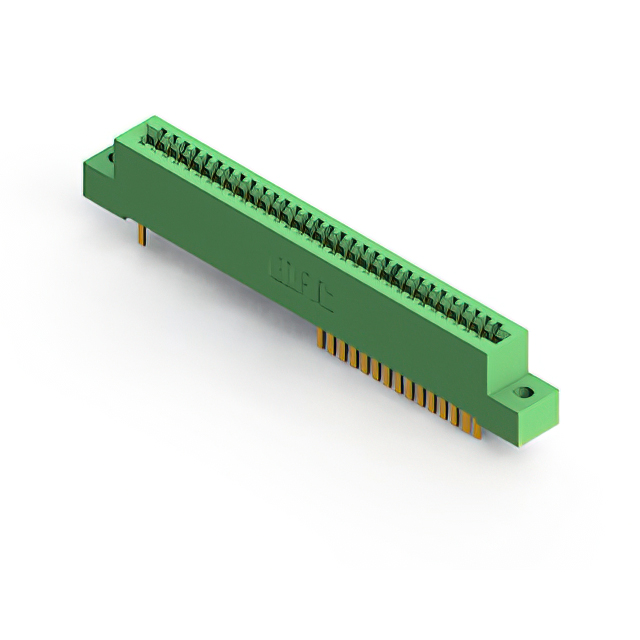

The EDAC Inc. 342-062-544-202 is a standard card edge connector from the 342 series, designed for straddle mount installation with a straight orientation. It features 62 positions and a 2.54 mm pitch, accommodating board thicknesses of 1.57 mm. The contacts are made of copper alloy with gold plating, rated for 3 A current. The housing utilizes thermoplastic polyester insulation.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for double-sided card edge connections
• Straddle mount style ensures secure vertical positioning on the PCB
• Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance
• Thermoplastic polyester housing offers high-temperature stability and durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronics modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to ensure correct termination type and mounting style. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Cross-reference the pin count and pitch with your PCB design specifications before procurement to avoid compatibility issues.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface with straddle mounting is required. Ensure the target PCB thickness matches the 1.57 mm specification. Consider the 3 A current rating and gold plating for applications demanding high reliability in corrosive environments or frequent mating cycles.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of standard card edge connectors. The series provides various position counts and termination options. The 342-062 variant specifically addresses needs for moderate density connections with durable metal contacts and stable polymer insulation for industrial-grade performance.

Edgeboard Connectors Replacement Considerations

Check EDAC's official cross-reference list for direct substitutes within the 342 series. Verify that any alternative maintains the same 2.54 mm pitch, 62-position count, and straddle mount configuration to ensure mechanical and electrical compatibility.
