342-102-500-201

Edgeboard Connectors Overview

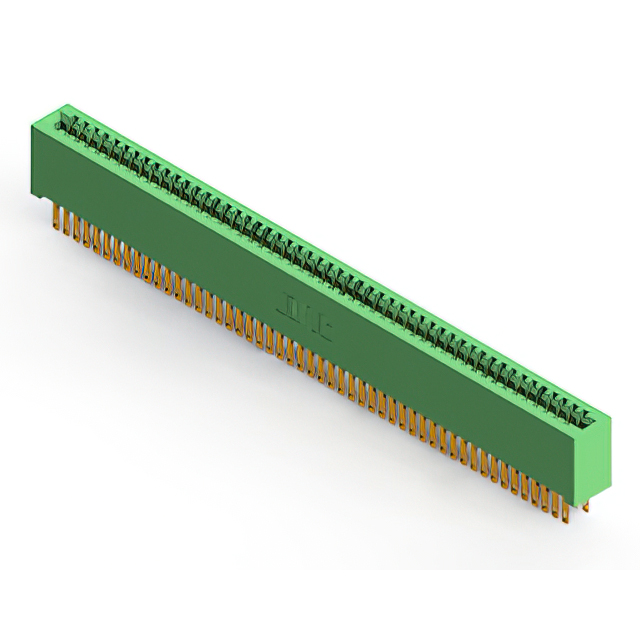

The EDAC Inc. model 342-102-500-201 is a standard card edge connector socket designed for vertical panel mount installation. It features a dual-edge configuration with 102 positions and a 2.54 mm pitch. The contacts are constructed from copper alloy with gold plating, rated for 3 A current. The housing utilizes thermoplastic polyester insulation. This component supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board retention
• Vertical orientation facilitates direct panel integration
• Gold-plated copper alloy contacts ensure reliable conductivity

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Automotive electronic control unit connections

Edgeboard Connectors Procurement Notes

Verify the complete part number against official EDAC documentation to confirm pin count and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through manufacturer datasheets. Validate that the specific suffix matches the required contact finish and housing color attributes.

Edgeboard Connectors Selection Notes

Select this component when a high-density vertical interconnect is required for double-sided edge cards. Verify that the 2.54 mm spacing aligns with the mating board layout. Consider the 3 A current rating for power distribution requirements. Ensure the panel mount style fits the enclosure design constraints compared to surface mount alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 342 series, which provides standard card edge solutions. The series offers various position counts and termination options. The 342 series is widely used in applications requiring robust mechanical retention and electrical stability for modular circuit boards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 342 series variants for different position counts. Verify equivalent connectors from other manufacturers by matching pitch, row count, and mounting style.
