345-006-500-404

Edgeboard Connectors Overview

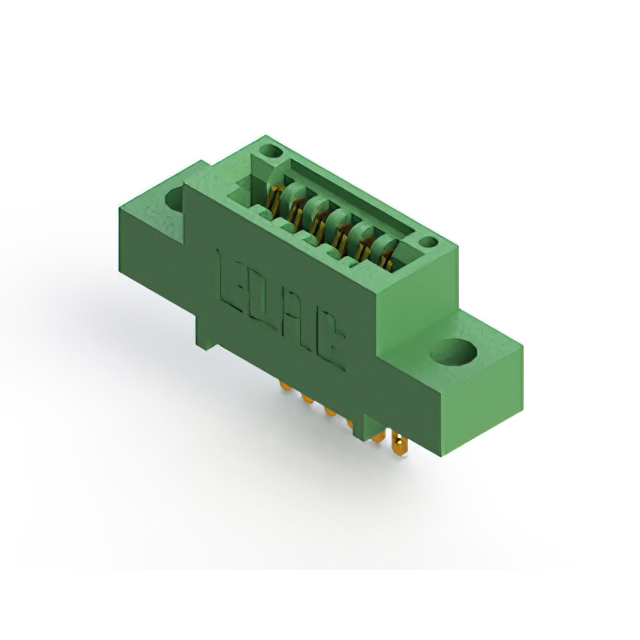

The EDAC Inc. 345-006-500-404 is a standard card edge connector from the 345 series, designed for single-side, non-specified applications. It features six positions with a 0.100" (2.54mm) pitch and accepts board thicknesses of 1.57 mm. The connector utilizes copper alloy contacts with gold plating and supports a current rating of 3 A. It employs wire wrap termination and is intended for through-hole mounting.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration
• Gold-plated copper alloy contacts
• Wire wrap termination style

Edgeboard Connectors Applications

• Standard card edge interconnection
• Electronic circuit board assembly
• Panel mount installations

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact count, termination type, and flange configuration. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the manufacturer datasheet for precise mechanical dimensions and electrical ratings to avoid integration errors.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row connector is required for thin boards. The 0.100" pitch suits general-purpose digital signals. Verify that the wire wrap termination aligns with the assembly process. Confirm the green housing material meets environmental standards for the intended operating temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options. The 345-006 variant specifically addresses compact, six-position needs. It shares design characteristics with other parts in the family, such as the thermoplastic polyester housing and consistent pitch specifications.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC 345-006-558-104 and 345-006-559-404. These alternatives share the same pitch and position count but may differ in termination style or mounting orientation. Verify mechanical fit and electrical ratings before substitution.
