345-009-559-107

Edgeboard Connectors Overview

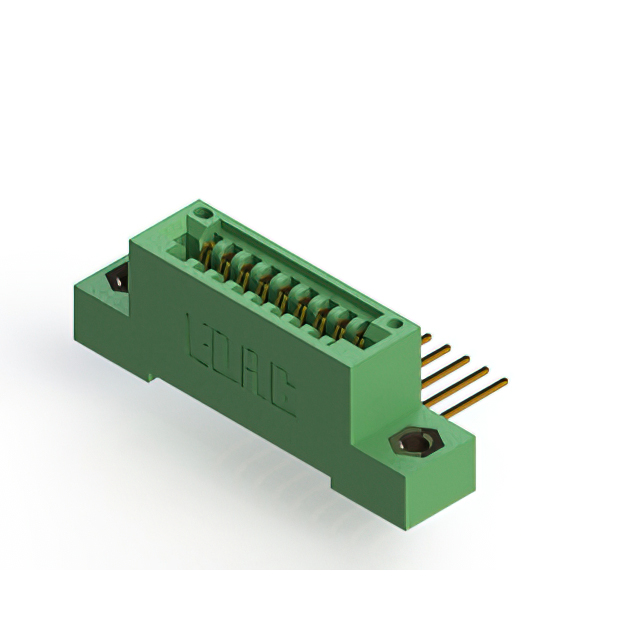

The EDAC Inc. model 345-009-559-107 is a standard card edge connector designed for single-sided board applications. It features a 0.100-inch (2.54mm) pitch with nine female positions arranged in one row. The connector utilizes copper alloy contacts with a gold plating finish to ensure reliable signal transmission. It supports a current rating of 3 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, providing durability and insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for specific board edge insertion
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester housing material offering high insulation resistance
• Right-angle panel mount installation style for space-constrained designs

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical device circuit boards needing reliable signal paths
• Agricultural technology equipment operating in harsh environments
• General-purpose electronic assemblies utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and mounting flange configurations. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements. Confirm lead times directly with authorized distributors as availability may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle connection is required for thin profile boards. The 0.100-inch pitch accommodates standard trace widths. Consider the 3 A current rating for power distribution needs. Verify that the panel mount style aligns with the mechanical enclosure design constraints and available mounting holes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic integration needs. Components in this line are engineered for durability in demanding operational environments, including medical and agricultural sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pitch and contact configurations but different position counts or mounting variations. Verify mechanical footprint compatibility before substitution. Consult official cross-reference guides for equivalent parts with matching electrical ratings and environmental tolerances.
