345-010-525-602

Edgeboard Connectors Overview

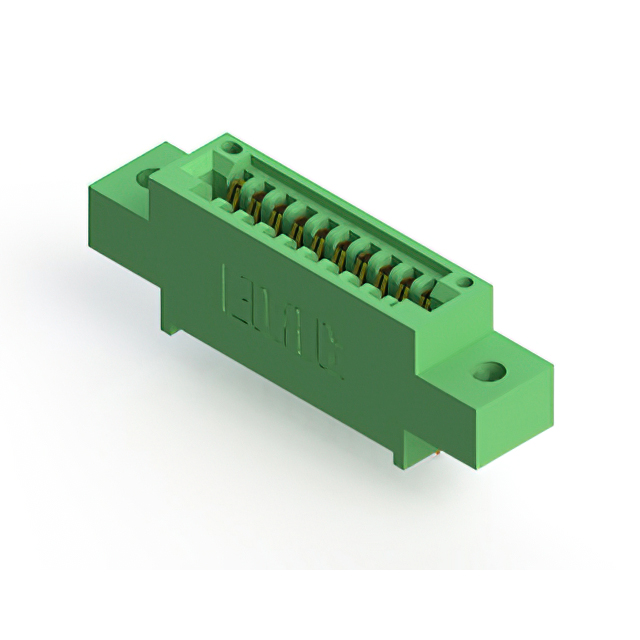

The EDAC Inc. 345-010-525-602 is a standard single-row card edge connector socket designed for vertical through-hole mounting. It features 10 positions with a 2.54 mm (0.100 inch) pitch, accommodating board thicknesses of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, and utilize PC pin termination. The housing is green thermoplastic polyester, operating between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for reliable signal transmission
• Vertical orientation facilitates direct PCB insertion
• Gold-plated contacts ensure corrosion resistance and stable conductivity
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplanes
• Medical device circuit board interconnects
• Agricultural technology sensor modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange configurations. Ensure compatibility with target PCB trace widths and hole dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical connection is required for boards up to 1.57 mm thick. Confirm that the 10-position count matches the design requirements and that the 3 A current rating suffices for the application load.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which offers various position counts and mounting styles. It shares common design principles with other 345-series connectors but differs in specific pin counts and physical dimensions.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic equivalents may not match the precise flange or termination specifications required for secure mechanical retention.
