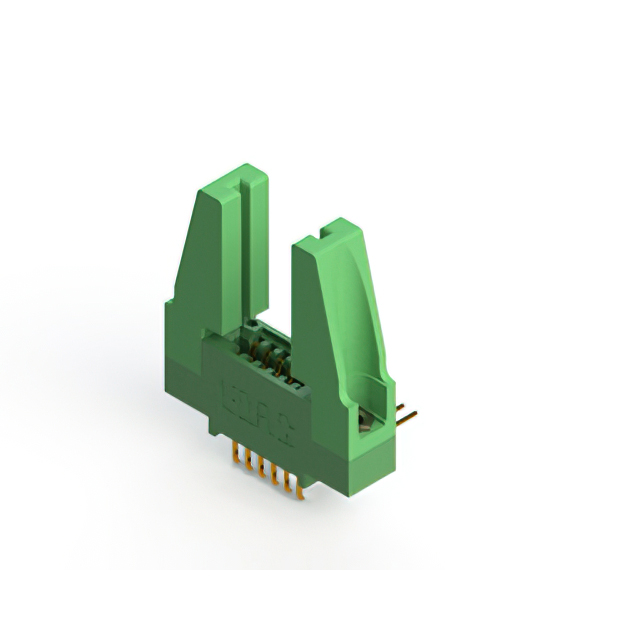

345-012-559-588 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 12POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-012-559-588
- Description：CONN EDGE DUAL FMALE 12POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：6
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole, Right Angle
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-012-559-588
Edgeboard Connectors Overview
The EDAC Inc. 345-012-559-588 is a dual-edge female card edge connector from the 345 series, designed for vertical through-hole mounting. It features 12 positions with a 0.100-inch (2.54mm) pitch and gold-plated contacts. The unit accommodates board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration for secure board retention
- Gold-plated contact surfaces for reliable signal transmission
- Vertical through-hole termination for stable PCB integration
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment interfaces
- Medical device circuit board connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct flange and plating specifications. Confirm RoHS compliance status prior to procurement. Cross-reference the manufacturer part number with distributor catalogs to validate current availability and standard lead times.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge female connector with a 0.100-inch pitch is required. Ensure the target PCB thickness falls within the specified 0.054 to 0.070-inch range. Verify that the operating environment remains within the -40°C to 105°C thermal limits defined by the datasheet.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series, which provides standardized card edge connectors for various industrial applications. The series offers multiple position counts and termination options, allowing engineers to scale designs while maintaining consistent mechanical and electrical interface standards across different product lines.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC cross-reference guide for verified substitutes. Generic equivalents may not match the precise flange dimensions or contact material specifications required for this specific application.
