345-013-523-604

Edgeboard Connectors Overview

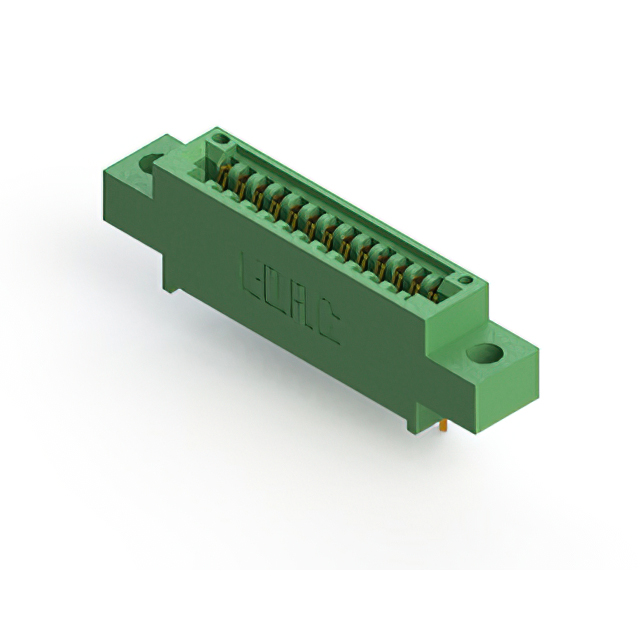

The EDAC Inc. 345-013-523-604 is a standard single-edge card edge connector featuring a 0.100 inch (2.54 mm) pitch. It provides 13 positions in a single row configuration, designed for through-hole mounting with a vertical orientation. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The housing is made of green thermoplastic polyester, offering durability and insulation. This component supports PCB thicknesses ranging from 0.054 inches to 0.070 inches (1.37 mm to 1.78 mm).

Edgeboard Connectors Feature Summary

• Single-row design with 13 positions for compact circuit board integration.
• Gold-plated copper alloy contacts ensure stable electrical connectivity.
• Vertical through-hole mounting style facilitates secure PCB attachment.
• Thermoplastic polyester housing provides robust mechanical support.

Edgeboard Connectors Applications

• Electronic module interconnection systems
• Industrial control board interfaces
• Telecommunications equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific contact finish and material composition against the official manufacturer datasheet before procurement. Confirm that the target printed circuit board thickness falls within the specified range of 1.37 mm to 1.78 mm to ensure proper mechanical fit and electrical performance. Ensure compliance with relevant environmental standards such as RoHS requirements for the intended application environment.

Edgeboard Connectors Selection Notes

Select this connector when a single-edge interface with a 2.54 mm pitch is required for vertical mounting. The 13-position count suits applications needing moderate channel density without excessive board space consumption. Verify that the gold-plated contact finish meets the signal integrity requirements of the specific electronic signals being transmitted through the connection points.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series is characterized by its .100 inch pitch and versatile mounting options. The 345-013-523-604 variant specifically addresses needs for smaller footprint connections while maintaining the structural reliability typical of the broader 345 family line.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 13-position count, 2.54 mm pitch, and single-edge configuration. Verify that any alternative part supports the same 1.37 mm to 1.78 mm PCB thickness range and utilizes compatible through-hole termination methods to maintain assembly compatibility.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The provided documentation does not specify the maximum operating temperature range for this specific part number.

Does this connector support double-sided card edges?

No, this model is designed exclusively for single-edge card connections.
