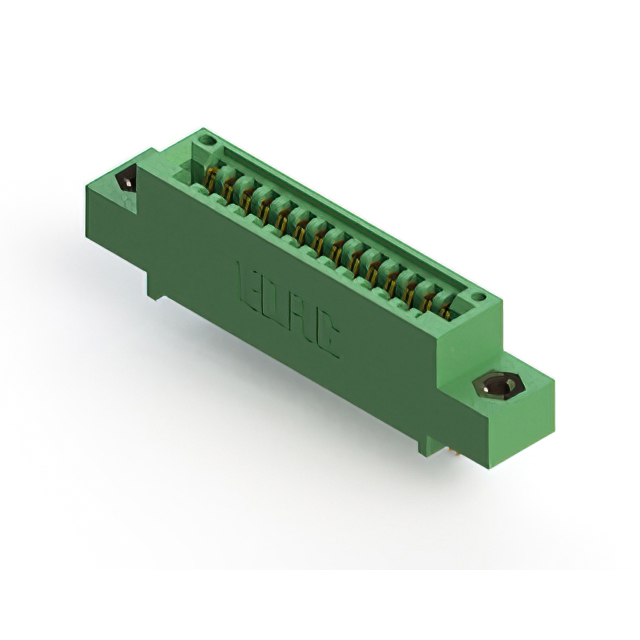

345-014-500-408 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 14POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-014-500-408
- Description：CONN EDGE SINGLE FML 14POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：14
- Number of Positions：14
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-014-500-408
Edgeboard Connectors Overview
The EDAC Inc. 345-014-500-408 is a standard card edge connector featuring 14 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. The unit supports a PCB thickness range of 1.37 mm to 1.78 mm (0.054" to 0.070") and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Vertical through-hole mounting configuration with integrated flanges
- Gold-plated copper alloy contacts for reliable signal transmission
- Thermoplastic polyester housing material for structural stability
Edgeboard Connectors Applications
- Single-sided card edge interconnection systems
- Industrial control board connections
- Electronic module interface assemblies
Edgeboard Connectors Procurement Notes
Verify the specific contact termination type and flange thread specifications against the official datasheet before procurement. Confirm that the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper mechanical engagement and electrical reliability.
Edgeboard Connectors Selection Notes
Select this component when a 14-position single-row connector is required for vertical board-to-board or board-to-backplane connections. Ensure the application environment remains within the -40°C to 105°C operating temperature limits and that the mating card thickness aligns with the connector's design specifications.
Edgeboard Connectors Part Context
This part belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and termination options, designed for robust electronic interconnections. The 345-014-500-408 specifically addresses needs for moderate-density single-sided connections with vertical mounting requirements.
Edgeboard Connectors Replacement Considerations
Direct substitutes must match the 14-position count, 2.54 mm pitch, and vertical through-hole form factor. Verify compatibility regarding flange mounting features and contact plating specifications to maintain system integrity.
