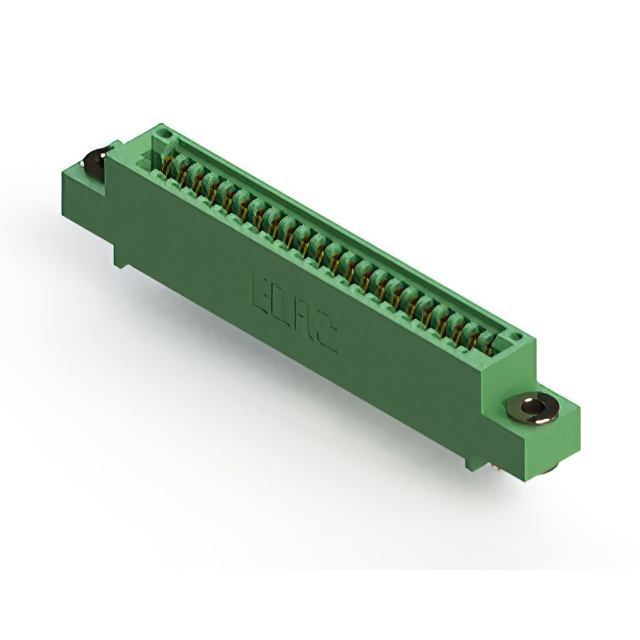

345-022-500-403 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 22POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-022-500-403
- Description：CONN EDGE SINGLE FML 22POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：22
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-022-500-403
Edgeboard Connectors Overview
The EDAC Inc. 345-022-500-403 is a single-row female card edge connector featuring 22 positions with a 0.100-inch (2.54mm) pitch. Designed for non-specified single-edge boards, it utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. The component supports panel mount installation via solder lug termination and operates within a temperature range of -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Single-row female contact configuration for reliable signal transmission
- Gold-plated copper alloy contacts ensure durable connection performance
- Thermoplastic polyester housing provides structural stability and insulation
Edgeboard Connectors Applications
- General electronic circuit interconnection
- Panel-mounted modular system integration
- Industrial control board connections
Edgeboard Connectors Procurement Notes
Verify the specific pin count and pitch against design requirements before procurement. Confirm that the single-edge board thickness falls within the connector's operational limits. Ensure the solder lug termination method aligns with the assembly process. Check RoHS compliance status if required by project specifications. Validate the operating temperature range against environmental conditions.
Edgeboard Connectors Selection Notes
Select this connector when a single-row interface with 22 positions is required. Ensure compatibility with single-edge PCB designs. Verify that the 0.100-inch pitch matches the board layout. Consider the panel mount style for fixed installations. Confirm that the thermal and electrical ratings meet system demands.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting options. It is designed for robust industrial and commercial applications requiring reliable interconnect solutions.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and mounting style when evaluating alternatives.
