345-028-524-208

Edgeboard Connectors Overview

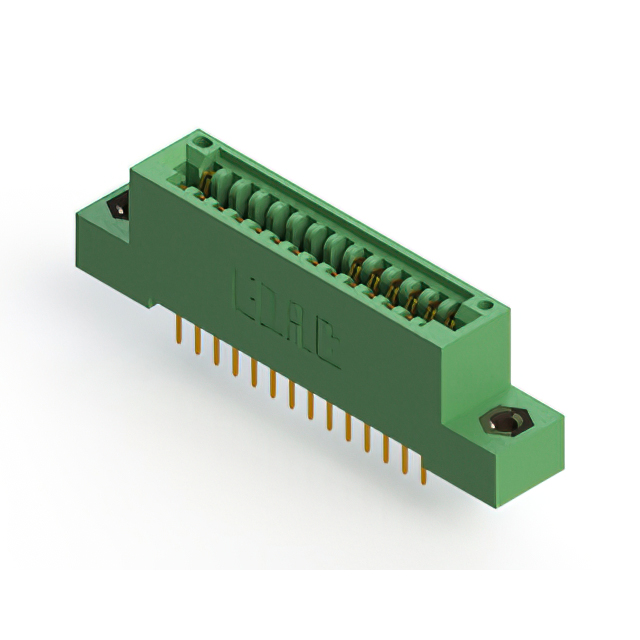

The EDAC Inc. 345-028-524-208 is a dual female card edge connector designed for vertical through-hole mounting. It features 28 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The connector utilizes copper alloy contacts with gold plating and a green thermoplastic polyester insulator. It supports board thicknesses of 0.054 to 0.070 inches and includes flanges with #4-40 thread compatibility.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card insertion
• Vertical through-hole termination for reliable PCB integration
• Gold-plated copper alloy contacts ensuring corrosion resistance
• Green thermoplastic polyester insulator housing

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment modules
• General electronic assembly applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure correct terminal type, orientation, and flange specifications. Confirm RoHS3 compliance status and lead time requirements directly with authorized distributors prior to procurement. Ensure the selected variant matches the required board thickness and mounting constraints.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 28-position female connector with a 0.100-inch pitch is required. Ensure the design accommodates vertical through-hole mounting and compatible board thickness ranges. Verify that the gold-plated contact material meets the environmental and durability requirements for the intended application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various configurations including different pin counts, orientations, and termination styles. The 345-028-524-208 specifically denotes a 28-position dual female variant within this established product line.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC part numbers such as 345-028-523-504 and 345-028-524-202. Verify mechanical dimensions, electrical ratings, and mounting hole patterns before substitution to ensure functional equivalence.
