345-030-523-207

Edgeboard Connectors Overview

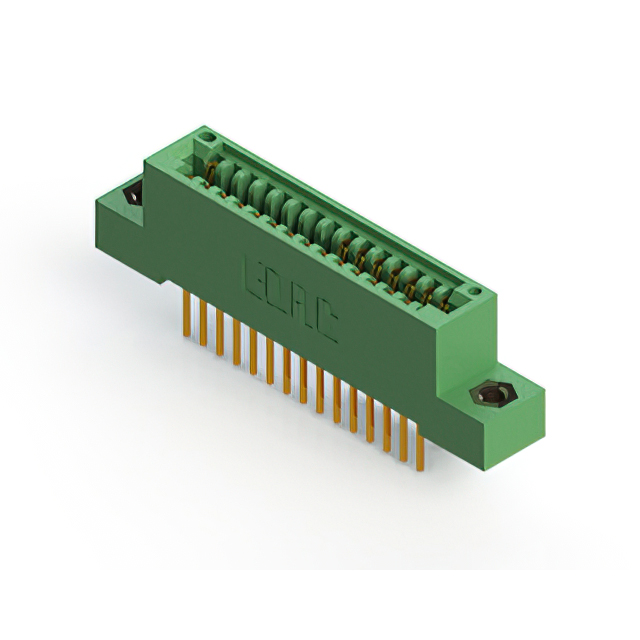

The EDAC Inc. 345-030-523-207 is a standard card edge connector from the 345 series, designed for through-hole mounting. It features 30 positions with a 0.100" (2.54mm) pitch and accepts non-specified dual-edge cards. The connector utilizes copper alloy contacts with gold plating and a thermoplastic polyester housing. It supports board thicknesses of 1.57mm and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Through-hole termination method for reliable PCB attachment
• Gold-plated copper alloy contacts ensuring corrosion resistance
• Thermoplastic polyester insulation material for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical device circuit boards needing reliable signal paths
• Agricultural technology equipment operating in harsh environments
• General-purpose electronic assemblies utilizing standard card edges

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 345/395 Series Ordering Guide to ensure correct pin count, pitch, and termination style. Confirm RoHS compliance status and environmental ratings match project requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 30-position dual-edge connector with a 2.54mm pitch is required. Ensure the mating card thickness aligns with the specified 1.57mm tolerance. Consider the through-hole mounting profile and right-angle orientation if space constraints dictate vertical integration on the printed circuit board.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, a line of standard card edge connectors. The series offers various position counts and termination options. The 345-030 variant specifically addresses applications needing thirty connection points with standard industrial durability and electrical characteristics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series parts for alternative pin counts or termination styles. Verify mechanical dimensions and electrical ratings against competitors like Samtec or Molex if sourcing from alternate manufacturers.
