345-031-559-608

Edgeboard Connectors Overview

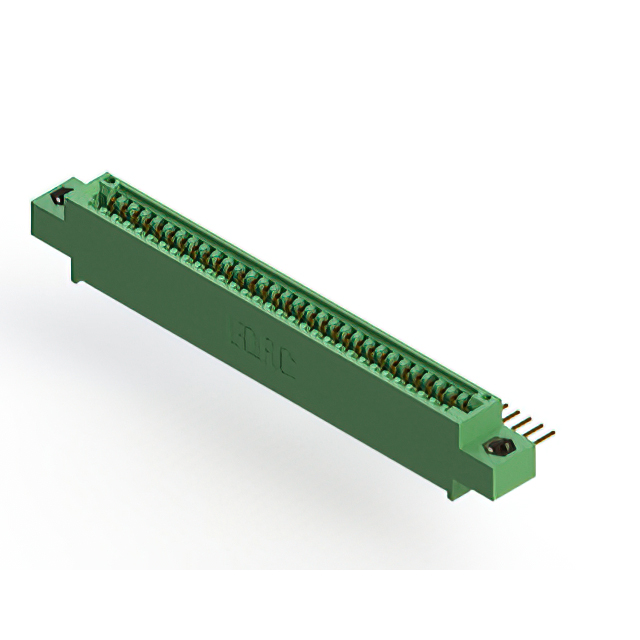

The EDAC Inc. 345-031-559-608 is a standard card edge connector designed for single-sided PCB applications. It features 31 positions with a 2.54 mm (0.100 inch) pitch, accommodating board thicknesses between 1.37 mm and 1.78 mm. The component utilizes copper alloy contacts with gold plating for reliable signal transmission. Designed for through-hole mounting, it offers vertical orientation and includes flanges for secure panel installation. The housing is constructed from thermoplastic polyester, ensuring durability in various industrial environments.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge insertion
• Gold-plated copper alloy contacts ensure stable electrical connectivity
• Thermoplastic polyester housing provides structural integrity and insulation
• Vertical through-hole mounting style with integrated flange design

Edgeboard Connectors Applications

• Industrial control system interface connections
• Medical device internal circuit board interconnects
• Agricultural technology equipment signal routing
• General-purpose electronic module expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material specifications. Ensure compatibility with the target PCB board thickness range of 1.37 mm to 1.78 mm. Confirm that the vertical mounting orientation aligns with the mechanical assembly requirements. Check for any regional distribution restrictions or RoHS compliance documentation prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 31-position interface is required for vertical PCB mounting. The 2.54 mm pitch is suitable for standard density circuit boards. Consider the gold plating for applications requiring high cycle life or corrosion resistance. Evaluate the flange design against available panel cutout dimensions to ensure proper mechanical retention during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging needs. EDAC focuses on providing robust interconnect solutions for demanding sectors, including medical and agricultural technologies, emphasizing reliability and environmental resilience in their product lineup.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers with identical 31-position counts and 2.54 mm pitch specifications. Verify that alternative components maintain the same vertical mounting angle and through-hole termination style. Ensure replacement parts match the original housing material and contact plating requirements for equivalent performance.
