345-036-521-807

Edgeboard Connectors Overview

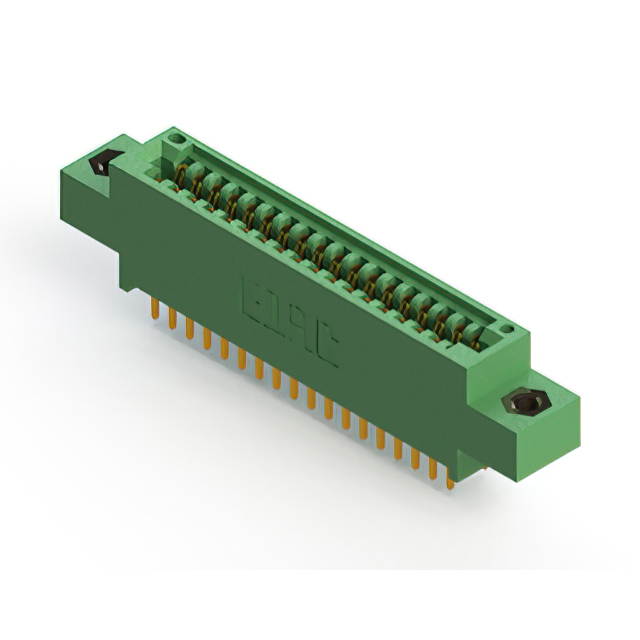

The EDAC Inc. 345-036-521-807 is a standard card edge connector receptacle featuring 36 positions with a 0.100-inch (2.54mm) pitch. It utilizes a dual female contact configuration designed for board-to-board or cable-to-board interconnections. The component supports a PCB thickness of 1.57mm and employs gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5A current, it offers a robust mechanical interface suitable for high-density electronic assemblies requiring stable connectivity.

Edgeboard Connectors Feature Summary

• Dual female contact configuration provides secure mating engagement for card edge boards.
• Gold-plated copper alloy contacts ensure low resistance and corrosion resistance.
• Thermoplastic polyester insulator offers structural stability and environmental protection.

Edgeboard Connectors Applications

• High-density electronic assembly interconnections
• Industrial control system circuit boards
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the receiving board thickness matches the specified 1.57mm requirement. Confirm that the application environment does not exceed the rated current of 5A per contact. Cross-reference the pin count and pitch to prevent installation errors in existing designs.

Edgeboard Connectors Selection Notes

Select this component when a 36-position dual-row interface is required with a 2.54mm pitch. It is appropriate for applications needing gold-plated contacts for durability. Consider the through-hole mounting style and straight orientation during layout. Evaluate the thermal and electrical ratings against the system's operational demands before integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series is characterized by its versatility in various industrial and commercial applications. The 345-036-521-807 variant specifically addresses the need for higher density connections while maintaining standard spacing dimensions common in legacy and modern electronics.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative suppliers by matching the 36-position count, 2.54mm pitch, and dual female configuration. Ensure mechanical dimensions and plating specifications align with the original design requirements.
