345-038-500-658

Edgeboard Connectors Overview

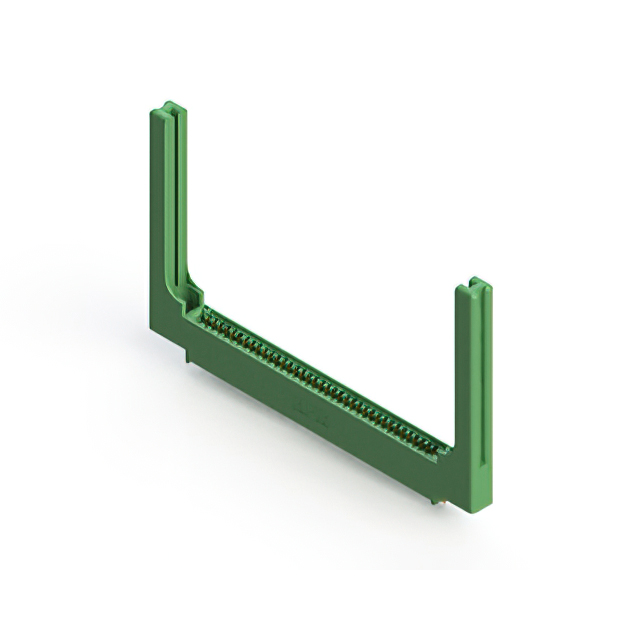

The EDAC Inc. 345-038-500-658 is a standard single-row card edge connector socket featuring 38 positions with a 2.54 mm pitch. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit accommodates board thicknesses ranging from 1.37 mm to 1.78 mm and employs a solder lug termination method. Constructed with thermoplastic polyester insulation, the component operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Features gold-plated copper alloy contacts for durable electrical connectivity
• Utilizes thermoplastic polyester insulation for stable performance
• Supports vertical panel mount installation configurations

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact flange features and mounting specifications. Ensure compatibility with target PCB thickness limits before procurement. Cross-reference RoHS compliance details directly with manufacturer datasheets to meet regulatory requirements for your specific application environment.

Edgeboard Connectors Selection Notes

Select this component when a 38-position single-edge connector is required for panel-mounted applications. Verify that the target circuit board thickness falls within the specified 1.37 mm to 1.78 mm range. Confirm that the vertical orientation and solder lug termination align with the mechanical design constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345/395 series of card edge connectors. The series provides various position counts and mounting styles for standard card edge interfaces. The 345 series specifically denotes socket configurations designed for robust industrial and specialized sector applications requiring high reliability.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Generic equivalents may not match the precise flange dimensions or contact plating specifications required for secure panel mounting.
