345-040-541-208

Edgeboard Connectors Overview

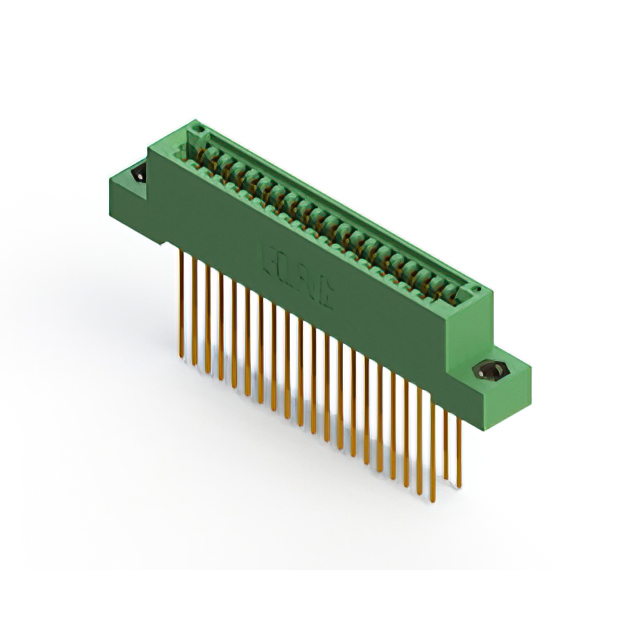

The EDAC Inc. 345-040-541-208 is a standard card edge connector socket featuring 40 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole vertical mounting, it accommodates PCBs with a thickness of 1.57 mm. The contacts are constructed from copper alloy and gold-plated to ensure reliable signal transmission, rated for 3 A current. The housing utilizes thermoplastic polyester material in green, providing structural integrity for dual-edge female connections.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic polyester housing for thermal stability
• Vertical through-hole termination for PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal interfaces
• Telecommunications equipment module connections
• Computing hardware peripheral attachments
• Consumer electronics internal board interconnects

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target PCB stack-up dimensions. Ensure that the required current rating and contact plating specifications align with the application's electrical requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 40-position dual-edge interface is required for vertical PCB mounting. Consider the 2.54 mm pitch and 1.57 mm board thickness constraints during mechanical design. Verify that the through-hole termination method matches the manufacturing process capabilities of the assembly line.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and configurations designed for general-purpose electronic applications. The 345 series emphasizes durability and consistent electrical performance across diverse industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitute part numbers. Ensure any replacement maintains identical pitch, position count, and mounting style to guarantee mechanical fit and electrical continuity within the existing system architecture.
