345-041-524-102

Edgeboard Connectors Overview

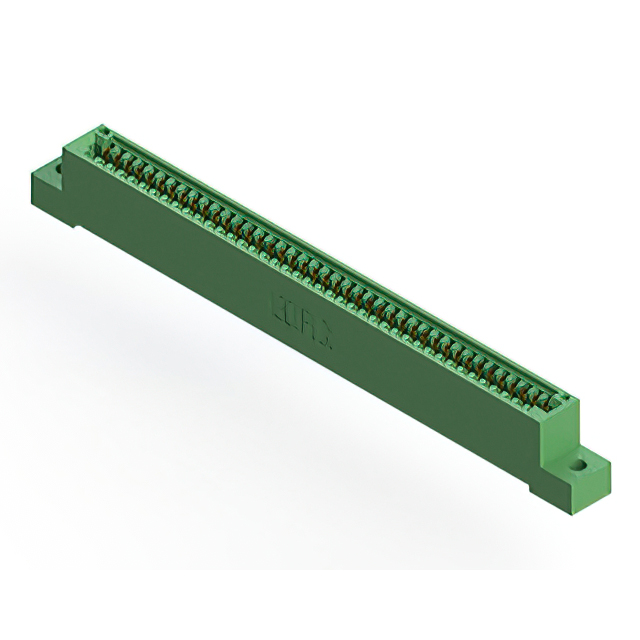

The EDAC Inc. 345-041-524-102 is a standard card edge connector from the 345 series, designed for through-hole vertical mounting. It features 41 positions with a 0.100-inch (2.54 mm) pitch and accepts single-sided, non-specified cards. The connector utilizes copper alloy contacts with gold plating and a thermoplastic polyester housing. It supports wire wrap termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting style for secure board integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability
• Wire wrap termination method simplifies assembly

Edgeboard Connectors Applications

• General electronic equipment interconnects
• Industrial control systems
• Computing and data storage hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact configuration and flange options. Ensure compatibility with target PCB thickness and card guide requirements. Confirm RoHS compliance status if restricted substances are a constraint for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 41-position connection is required with a 2.54 mm pitch. Consider the vertical orientation and wire wrap termination for prototyping or low-volume production. Evaluate the operating temperature range and current rating against system load requirements before finalizing the design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination styles. The 345-041 variant specifically addresses applications needing 41 connections in a compact vertical profile, utilizing durable materials for repeated insertion cycles.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series parts for alternative pin counts or termination types. Verify mechanical dimensions and electrical ratings match before substituting with generic equivalents.
