345-043-520-478

$12.73

Description：CONN EDGE SINGLE FML 43POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:d595646c7fa5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

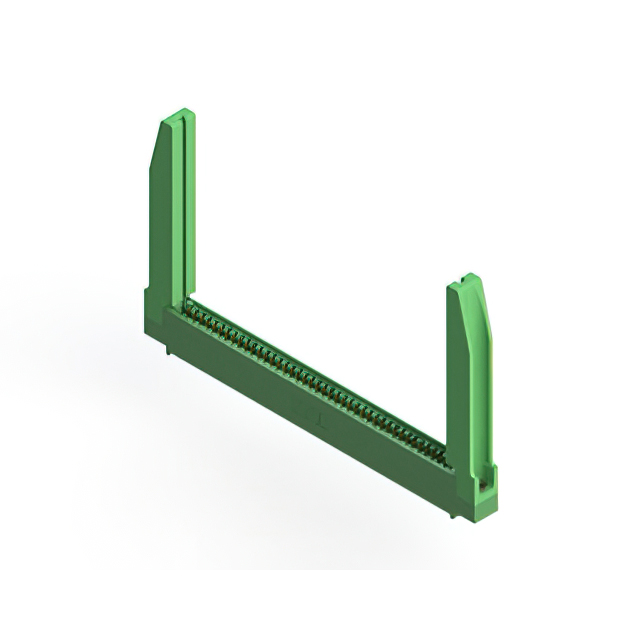

345-043-520-478 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 43POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-043-520-478

Description：CONN EDGE SINGLE FML 43POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：43
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-043-520-478

345-043-520-478

Edgeboard Connectors Overview

The EDAC Inc. 345-043-520-478 is a standard card edge connector featuring 43 positions with a 0.100 inch (2.54 mm) pitch. It utilizes a single row of female contacts plated with gold over nickel, designed for reliable signal transmission. The housing is constructed from green thermoplastic polyester, providing durability and insulation. This component supports through-hole mounting and is rated for a maximum operating temperature of +105°C and a minimum of -40°C. It accommodates board thicknesses within the range of 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

Single row female contact configuration for edgeboard insertion
Gold-plated contacts ensure stable electrical connectivity
Green thermoplastic polyester housing provides structural integrity

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Medical equipment utilizing standardized card edge interfaces
Agricultural technology hardware exposed to harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and flange configurations. Ensure compatibility with target PCB board thickness specifications before procurement. Confirm RoHS compliance status directly with the manufacturer or authorized distributors. Validate that the selected variant matches the required current rating and insulation resistance parameters for the intended application environment.

Edgeboard Connectors Selection Notes

Select this model when a 43-position interface with a 2.54 mm pitch is required. Consider the gold plating for applications demanding high corrosion resistance and low contact resistance. Evaluate the through-hole mounting style against available PCB layout constraints. Ensure the operating temperature range aligns with the environmental conditions of the final assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting options tailored for diverse electronic interconnection needs. These connectors are engineered for use in demanding sectors including medical, industrial, and agricultural technologies where reliability is critical.
