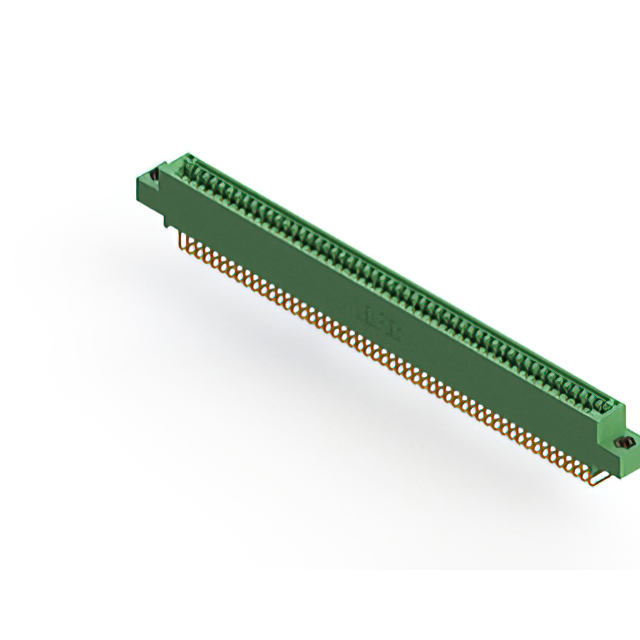

345-052-558-407

$15.53

Description：CONN EDGE SINGLE FML 52POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:319daff9cc05 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

345-052-558-407 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 52POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-052-558-407

Description：CONN EDGE SINGLE FML 52POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：52
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-052-558-407

345-052-558-407

Edgeboard Connectors Overview

The EDAC Inc. 345-052-558-407 is a standard single-row card edge connector designed for reliable signal transmission in electronic assemblies. It features 52 positions with a 0.100-inch (2.54mm) pitch, accommodating PCBs with thicknesses ranging from 0.054 to 0.070 inches. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports through-hole mounting and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Gold-plated contacts ensure low resistance and corrosion resistance
Thermoplastic polyester housing provides thermal stability
Through-hole mounting offers secure board attachment

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Medical devices

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact mechanical variations such as flange types or termination styles. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current manufacturer declarations to meet regulatory requirements for the intended deployment environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density single-row interface is required for rigid PCB connections. Consider the 52-position count and 2.54mm pitch for space-constrained designs. Evaluate the operating temperature range and contact plating requirements against environmental conditions to ensure long-term reliability and electrical performance stability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which specializes in standard card edge connectors. The series offers various position counts and mounting options to support diverse electronic integration needs. Components in this family are engineered for durability and consistent electrical performance across industrial and commercial applications.
