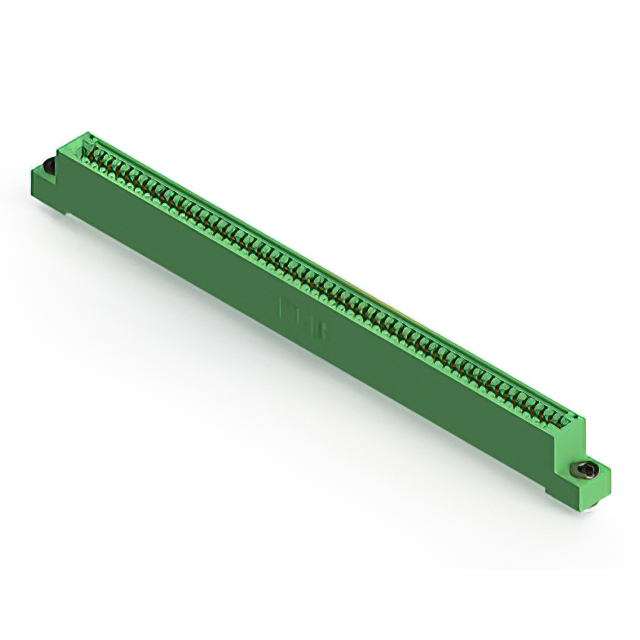

345-054-525-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 54POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-054-525-103
- Description：CONN EDGE SINGLE FML 54POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：54
- Number of Positions：54
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-054-525-103
Edgeboard Connectors Overview
The EDAC Inc. 345-054-525-103 is a standard card edge connector featuring 54 positions in a single row configuration. It utilizes a 0.100-inch (2.54mm) pitch with female contacts designed for vertical through-hole mounting. The component employs wire wrap termination and gold-plated copper alloy contacts to ensure reliable signal transmission. It is rated for 3A current and operates within a temperature range of -40°C to +105°C, accommodating board thicknesses between 1.37mm and 1.78mm.
Edgeboard Connectors Feature Summary
- Single-row female contact design for non-specified single-edge boards
- Wire wrap termination method for secure circuit attachment
- Gold-plated copper alloy contacts for corrosion resistance
- Vertical through-hole installation style
Edgeboard Connectors Applications
- General-purpose electronic interconnects
- Industrial control systems
- Telecommunications equipment
- Test and measurement instrumentation
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact flange characteristics and plating thickness. Ensure compatibility with target PCB board thickness specifications before procurement. Confirm RoHS compliance status via the latest manufacturer datasheet to meet regulatory requirements for the intended application environment.
Edgeboard Connectors Selection Notes
Select this model when a single-row interface is required for high-density connections. Consider the wire wrap termination requirement during PCB layout planning. Verify that the operating temperature range meets environmental demands. Ensure the mechanical fit aligns with available panel space and mounting constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs. It provides a robust connection solution for edge-board applications requiring durable electrical interfaces.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers within the EDAC 345 series for alternative position counts or row configurations. Verify mechanical dimensions and pinout compatibility before substituting with other manufacturers' equivalents.
