345-056-520-512

Edgeboard Connectors Overview

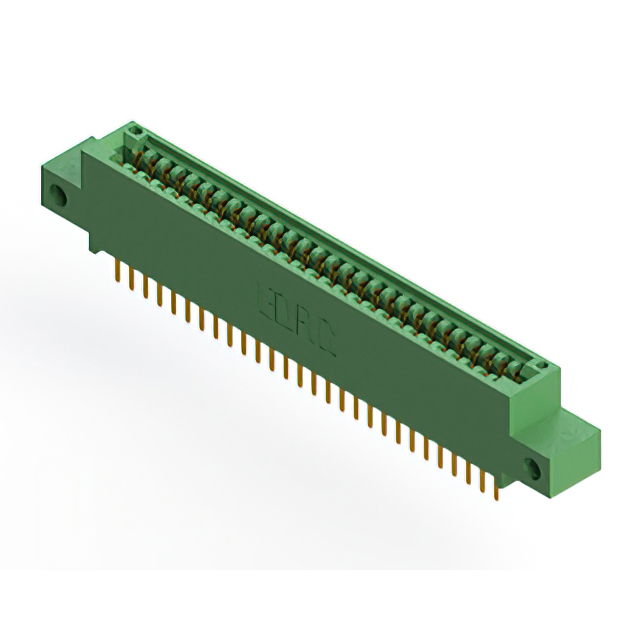

The EDAC Inc. model 345-056-520-512 is a standard card edge connector featuring a dual female configuration with 56 positions. It utilizes a 2.54 mm (0.100 inch) pitch and supports a current rating of 3 A. The housing is constructed from thermoplastic polyester, while contacts are made of copper alloy with gold plating. Designed for through-hole vertical mounting, it accommodates board thicknesses within the range of 1.37 mm to 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge engagement
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability
• Vertical through-hole mounting style facilitates PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware operating in harsh environments
• General electronic assemblies utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and pitch for your design. Confirm that the through-hole mounting style aligns with your PCB fabrication capabilities. Ensure the thermal and electrical ratings meet the operational requirements of the target application before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided female connector with a 2.54 mm pitch is required. Consider the vertical orientation and through-hole installation method for compatibility with existing assembly processes. Evaluate the 3 A current rating and gold plating against the specific electrical demands of the circuit design to ensure long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series, which offers a comprehensive range of card edge connectors. The series includes various configurations designed for diverse industrial and commercial applications. The 345-056-520-512 variant specifically addresses needs for higher density connections with dual female contacts.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include models such as 345-056-520-208 and 345-056-520-458. Verify mechanical dimensions and contact specifications before substitution to ensure functional equivalence.
