345-058-558-512

Edgeboard Connectors Overview

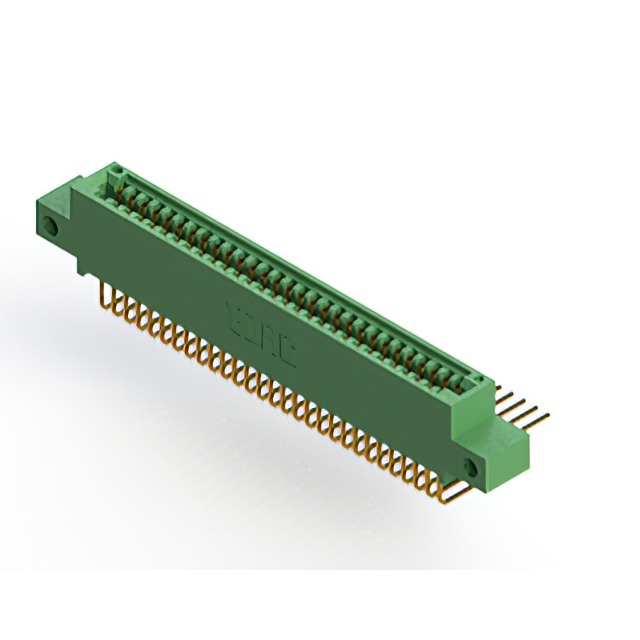

The EDAC Inc. 345-058-558-512 is a standard card edge connector from the 345 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 58 positions arranged in two rows. The connector utilizes a 0.100-inch (2.54mm) pitch and supports board thicknesses ranging from 0.054 to 0.070 inches. Constructed with copper alloy contacts that are gold-plated, it ensures durability and low contact resistance. The unit employs wire wrap termination for secure mounting and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration provides robust connection stability for double-sided card edges.
• Gold-plated copper alloy contacts ensure high conductivity and corrosion resistance over time.
• Wire wrap termination style offers secure mechanical anchoring without soldering requirements.

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and termination type. Ensure compatibility with target PCB thickness limits before integration. Confirm RoHS compliance status through current manufacturer declarations as regulatory standards may evolve.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, non-soldered termination solution is required for high-reliability applications. Consider the 2.54mm pitch constraints and verify that the mating card edge dimensions fall within the specified tolerance range for optimal contact engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series is characterized by its use of wire wrap terminations and flexible housing materials. It serves as a specialized interconnect solution distinct from surface-mount or through-hole solder variants found in other connector families.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part number 345-058-558-588 for potential functional equivalence regarding position count and termination style. Verify dimensional drawings and flange specifications to ensure mechanical fit during substitution.
